01 - Compressor Compartment
02 - Functional (ref/frz)
03 - Functional (ref/frz)
04 - Fz Door
05 - Interior Accessories
06 - Rear Components
07 - Ref Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

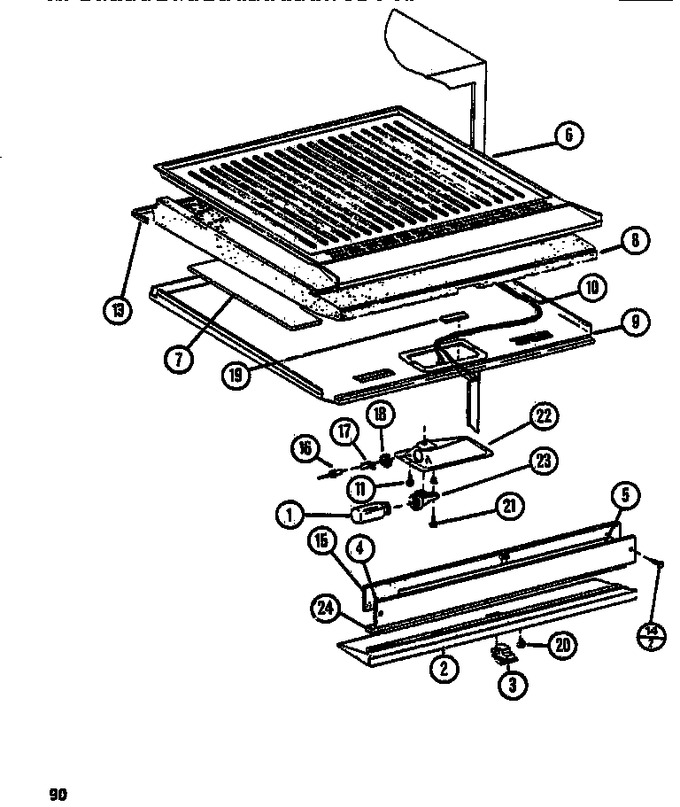

| 1 | W11618980 | Lamp 40 Watt (Replaces: B8363301) |
|
$ 22.42 | |||||
| 2 | D7653004 | Breaker-top |
|
- | |||||
| 3 | C8929703 | Light Switch K |
|
- | |||||
| 4 | C8842509 | Center Mullion |
|
- | |||||
| 4 | C8842510 | Center Mullion |
|
- | |||||
| 4 | C8842506 | Center Mullion |
|
- | |||||
| 5 | D7654502 | Heater Mullion |
|
- | |||||
| 6 | D7714706 | Bottom, Freezer |
|
- | |||||
| 7 | C8887903 | Insulation |
|
- | |||||
| 8 | D7816907 | Drain Block Kit |
|
- | |||||
| 9 | D7539310 | Top Ref. |
|
- | |||||
| 10 | D7882201 | Harness, Mullion |
|
- | |||||
| 11 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 13 | B5759626 | Gasket, Sealing |
|
- | |||||
| 14 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 15 | 876370 | Insulation, Batt (Replaces: B0523561) |
|
$ 243.14 | |||||
| 16 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 14.16 | |||||
| 17 | M0320905 | Terminal Ground A |
|
- | |||||
| 18 | M0272803 | Lock Washer |
|
- | |||||
| 19 | A0092404 | Pad-protective |
|
- | |||||
| 20 | M0210217 | Screw, No.8-18 X 3/8 P Trs Hd Lp |
|
- | |||||
| 21 | M0217225 | Screw |
|
- | |||||
| 22 | D7861801 | Housing Light |
|
- | |||||
| 23 | D7845101 | Socket, Lamp |
|
- | |||||
| 24 | B5759622 | Gasket, Foam |
|
- |
