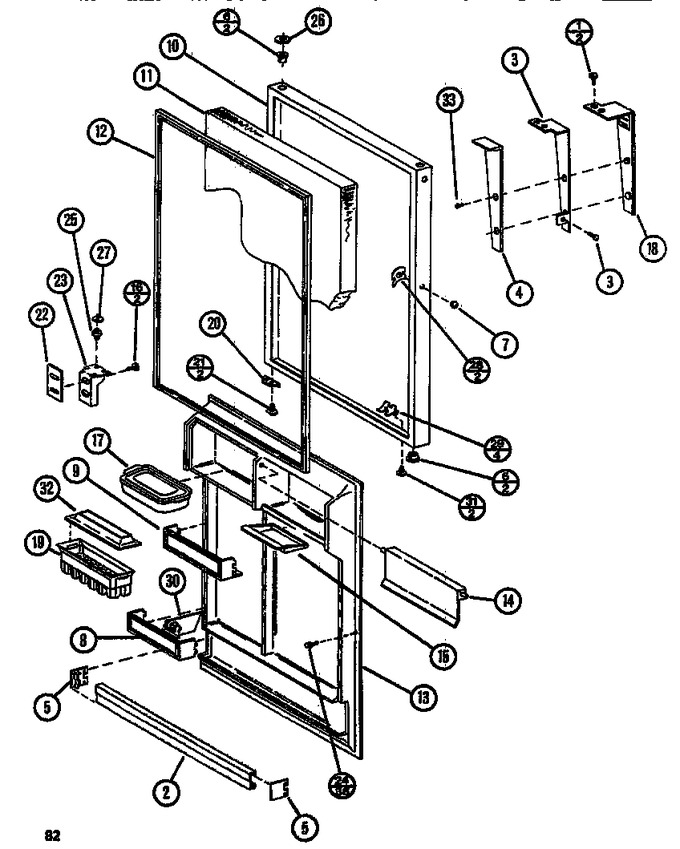

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
2	C8907228		Retainer Pkg		Appelez-nous	-
3	D7744814		Handle Door		Appelez-nous	-
3	D7744812		Door Handle		Appelez-nous	-
4	D7745008		Handle Pad Inner		Appelez-nous	-
4	D7745004		Pad Handle		Appelez-nous	-
4	D7745012		Handle Pad Inner L		Appelez-nous	-
5	D7681804		Cap, Pkg Retainer End		Appelez-nous	-
5	D7681803		Cap, Pkg Retainer End		Appelez-nous	-
6	C3652901		Bushing, Hinge Pin		Appelez-nous	-
6	C8852202		Bearing, Hinge		Appelez-nous	-
7	M0311301		Plug Button		Appelez-nous	-
7	M0311303		Plug Button		Appelez-nous	-
7	M0311302		Plug Button		Appelez-nous	-
8	D7574513		Ret Cont. Pkg V		Appelez-nous	-
9	D7565413		Door Shelf V		Appelez-nous	-
10	D7731741		Lower Door Pan, Ref, Gold		Appelez-nous	-
10	D7731742		Dr Ref L-t-tr520k1		Appelez-nous	-
10	D7731740		Dr Ref W Tr20		Appelez-nous	-
11	B5683508		Insulation		Appelez-nous	-
12	D7605109		Gasket				$ 31.30
13	D7805606		Inner Door Liner Ref		Appelez-nous	-
14	D7805709		Door Dairy		Appelez-nous	-
15	D3799802		Butter Tray		Appelez-nous	-
16	M0246258		Screw		Appelez-nous	-
17	D7806403		Container Sec. Ser.		Appelez-nous	-
18	D7744910		Pad W Outer Handle		Appelez-nous	-
18	D7744914		Outer Handle Pad		Appelez-nous	-
18	D7744906		Pad-outer Handle		Appelez-nous	-
19	D7695617		Bucket-egg		Appelez-nous	-
20	C8894804		Stop Door		Appelez-nous	-
21	M0203458		Screw		Appelez-nous	-
22	B5744802		Shim		Appelez-nous	-
22	B5744803		Shim		Appelez-nous	-
22	B5744804		Shim, Bottom Hinge		Appelez-nous	-
22	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
23	C8814803		Bracket Lower Hinge		Appelez-nous	-
24	M0219730		Screw				$ 7.65
25	C8814901		Pin, Hinge K		Appelez-nous	-
26	M0274049		Washer		Appelez-nous	-
27	M0274050		Washer		Appelez-nous	-
28	B8361401		Nut		Appelez-nous	-
29	B8363501		Nut		Appelez-nous	-
30	D7806103		Snugger Door		Appelez-nous	-
31	M0203931		Screw, Tf		Appelez-nous	-
32	D7805909		Cover, Egg Bucket		Appelez-nous	-
33	M0215115		Screw		Appelez-nous	-
