SELECT A DIAGRAM

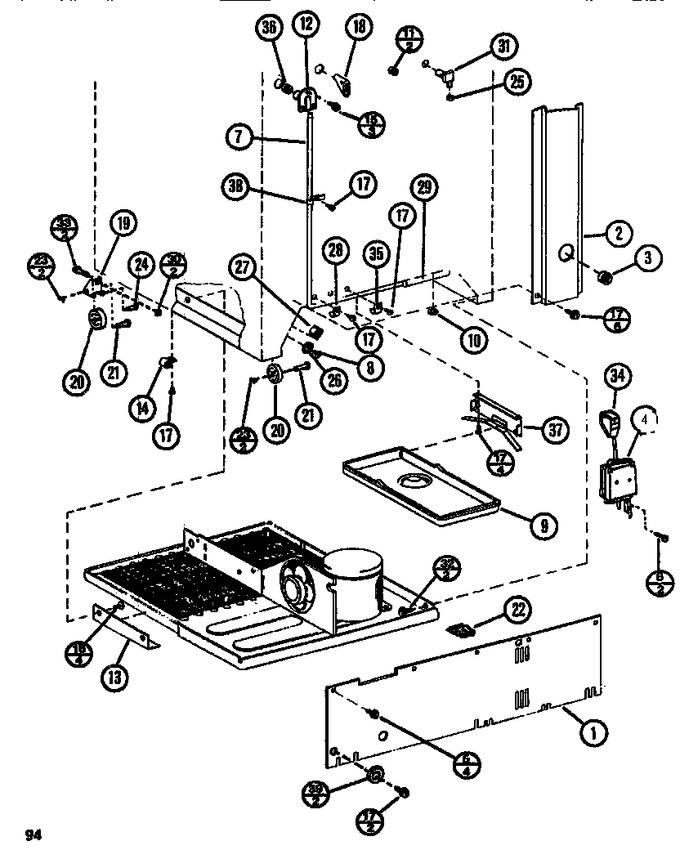

01 - Compressor Compartment


02 - Functional (ref/frz)


03 - Functional (ref/frz)


04 - Fz Door


05 - Interior Accessories


06 - Rear Components


07 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7695503		Mc Back		Appelez-nous	-
2	D7539409		Cover Heat Exchanger		Appelez-nous	-
3	A4554803		Snap, Bushing		Appelez-nous	-
4	C8946901		Terminal Box Assy		Appelez-nous	-
5	M0219704		Screw		Appelez-nous	-
6	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
7	D7819803		Drain Tube		Appelez-nous	-
8	M0251017		Screw		Appelez-nous	-
9	D7790601		Drain Pan		Appelez-nous	-
10	A3076901		Plug-button				$ 5.70
11	A3080001		Plug, Button (blk)		Appelez-nous	-
12	C3630901		Elbow,drain Tube		Appelez-nous	-
13	D7835501		Support M.c.		Appelez-nous	-
14	M0102305		Clamp, Tube		Appelez-nous	-
15	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
16	M0211530		Screw		Appelez-nous	-
17	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
18	B5749501		Tunnel-heat Ex		Appelez-nous	-
19	C8742401		Assy, Roller Bracket		Appelez-nous	-
20	M0520102		Roller		Appelez-nous	-
21	M1200202		Pin K		Appelez-nous	-
22	B8355201		Cord Relief		Appelez-nous	-
23	M1200004		Cotter Pin K		Appelez-nous	-
24	M1205302		Rivet				$ 5.85
25	M0310319		Plug Button		Appelez-nous	-
26	M0272803		Lock Washer		Appelez-nous	-
27	M0104102		Clip, Cord				$ 8.10
28	M0102303		Clamp		Appelez-nous	-
29	A0329816		Insulation, Tube		Appelez-nous	-
30	M0286708		Nut, Speed				$ 47.85
31	B8318805		Fill Tube Assy		Appelez-nous	-
32	M0233844		Screw, T F		Appelez-nous	-
33	M0204339		Screw Bolt K		Appelez-nous	-
34	B5669005		Cord, Power		Appelez-nous	-
35	M0102325		Clamp		Appelez-nous	-
36	A3132301		Gasket		Appelez-nous	-
37	D7790501		Support Drain Pan		Appelez-nous	-
38	B8372901		Clamp		Appelez-nous	-
39	M0270501		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
