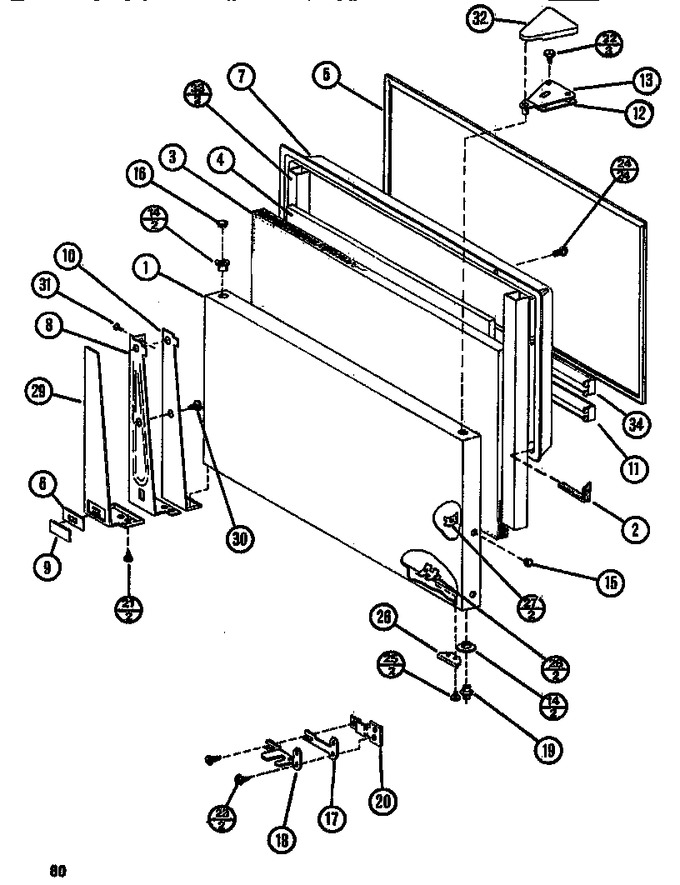

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7745210		Dr Frz W-t-tr520k1		Appelez-nous	-
1	D7745211		Dr Frz G-t-tr520k1		Appelez-nous	-
1	D7745212		Dr Frz L-t-tr520k1		Appelez-nous	-
2	B0523563		Insulation Ft. K		Appelez-nous	-
3	B5683513		Insulation		Appelez-nous	-
4	B5683515		Insulation		Appelez-nous	-
5	D7605108		Gasket		Appelez-nous	-
6	C8962701		Pad Nameplate		Appelez-nous	-
7	D7869602		Inner Door, Frz		Appelez-nous	-
8	D7744813		Handle Door		Appelez-nous	-
8	D7744811		Door Handle		Appelez-nous	-
9	C8962615		Nameplate		Appelez-nous	-
10	D7745003		Pad Handle		Appelez-nous	-
10	D7745011		Handle Pad Inner L K		Appelez-nous	-
10	D7745007		Handle Pad Inner W		Appelez-nous	-
11	D7869807		Retainer, Cant. V		Appelez-nous	-
12	B8389001		Shim, Top Hinge		Appelez-nous	-
12	B8389002		Shim Top Hinge		Appelez-nous	-
12	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
13	B5744301		Hinge		Appelez-nous	-
14	C3652901		Bushing, Hinge Pin		Appelez-nous	-
15	M0311301		Plug Button		Appelez-nous	-
15	M0311302		Plug Button		Appelez-nous	-
15	M0311303		Plug Button		Appelez-nous	-
16	M0310606		Plug		Appelez-nous	-
16	M0310601		Plug		Appelez-nous	-
16	M0310608		Plug		Appelez-nous	-
17	B8351402		Shim K		Appelez-nous	-
17	B8351403		Shim, Center Hinge		Appelez-nous	-
17	B8351401		Shim K		Appelez-nous	-
18	C8948601		Center Hinge Bracket		Appelez-nous	-
19	B8373101		Center Pin Hinge		Appelez-nous	-
20	C8925501		Kit, Tap Plate & Screw		Appelez-nous	-
21	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
22	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
23	M0226831		Screw		Appelez-nous	-
24	M0219730		Screw				$ 7.65
25	M0203458		Screw		Appelez-nous	-
26	C8894804		Stop Door		Appelez-nous	-
27	B8361401		Nut		Appelez-nous	-
28	B8363501		Nut		Appelez-nous	-
29	D7744913		Pad-outer Handle		Appelez-nous	-
29	D7744909		Pad		Appelez-nous	-
29	D7744905		Pad-outer Handle		Appelez-nous	-
30	M0215115		Screw		Appelez-nous	-
31	M0203931		Screw, Tf		Appelez-nous	-
32	D7872105		Cover Hinge L		Appelez-nous	-
32	D7872103		Cover Hinge L		Appelez-nous	-
32	D7872104		Cover Hinge		Appelez-nous	-
33	C8987106		Seal Door Dike		Appelez-nous	-
34	D7869907		Door Shelf		Appelez-nous	-
