SELECT A DIAGRAM
New Model Search:

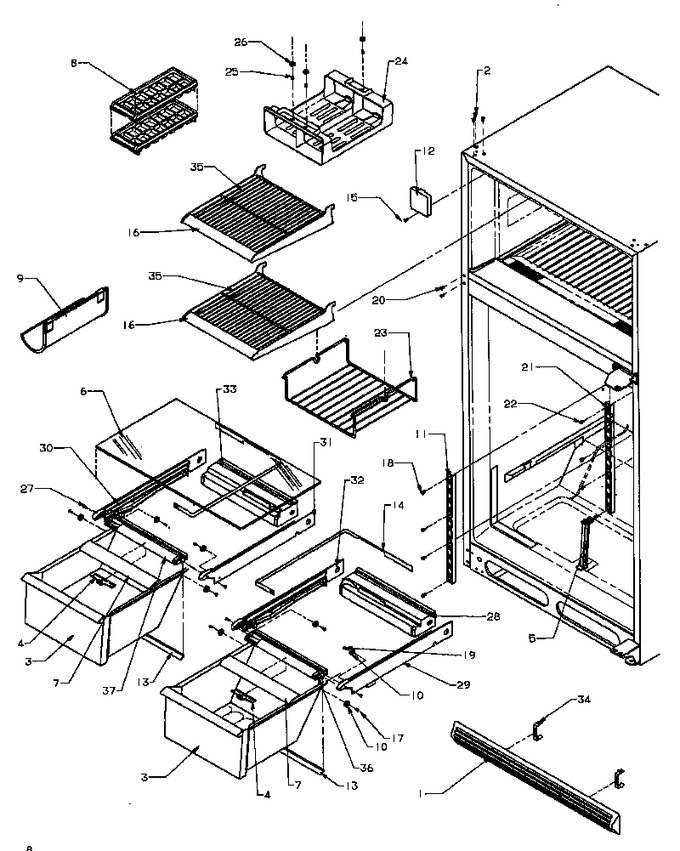

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10629401 | Grille, Toe (black) |
|
- | |||||
| 1 | 10629403 | Grille-l Toe |
|
- | |||||
| 1 | 10629402 | Grille, Toe (white) |
|
- | |||||
| 2 | M0310716 | Plug |
|
- | |||||
| 2 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 2 | WP12246608 | Plug, Button (blk) (Replaces: M0310727) |
|
Immediately | $ 8.15 | ||||
| 3 | 10629101 | Pan, Crisper |
|
- | |||||
| 4 | 10797501 | Slide, Crisper |
|
- | |||||
| 5 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 6 | Y10370063 | Glass, Shelf |
|
- | |||||
| 7 | 10688012 | Extr, Crisp Front (l) |
|
- | |||||
| 7 | 10688009 | Extr, Crisp Front (r) |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 9 | 10448901 | Rack, Wine |
|
- | |||||
| 10 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 11 | D7599004 | Ladder, Center |
|
- | |||||
| 12 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 13 | 10530203 | Seal, Crisper |
|
- | |||||
| 14 | 10467806 | Band, Crisper Cont |
|
- | |||||
| 15 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 16 | 10505606 | Extr, Wire Shelf |
|
- | |||||
| 17 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 18 | M0230923 | Screw |
|
- | |||||
| 19 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 20 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 20 | M0310730 | Plug Button (almond) |
|
- | |||||
| 20 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 21 | D7599106 | Ladder, Side |
|
- | |||||
| 22 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 23 | 10250502 | Rack, Freezer |
|
- | |||||
| 24 | 10423001 | Rack, Ice Service |
|
- | |||||
| 25 | M0219523 | Screw |
|
- | |||||
| 26 | M0270508 | Washer |
|
- | |||||
| 27 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 28 | 10433803 | Rail, Crisper Back |
|
- | |||||
| 29 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 30 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 31 | 10432803 | Rail, Ctr. Crisper |
|
- | |||||
| 32 | 10432804 | Rail, Ctr. Crisper |
|
- | |||||
| 33 | 10435603 | Rail, Crisper Back |
|
- | |||||
| 34 | 10551501 | Clip-toe Grille |
|
- | |||||
| 35 | 10506003 | Shelf, Wire Frz |
|
- | |||||
| 36 | 10687901 | Rail, Crisper Fr (r) |
|
- | |||||
| 37 | 10687902 | Rail, Crisper Fr (l) |
|
- | |||||
| NI | 10698510 | Assy, Crisper Frame |
|
- |
