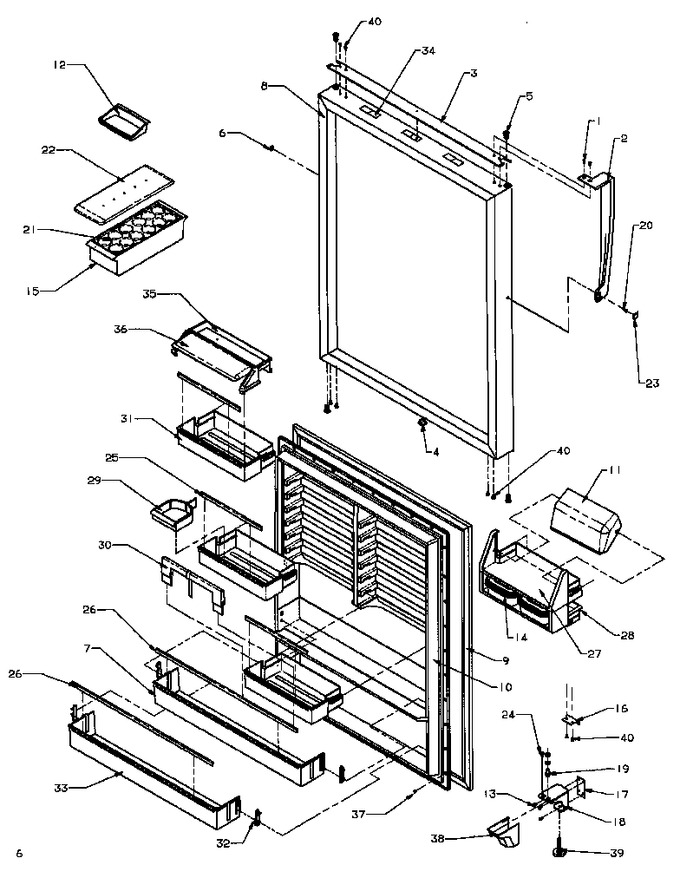

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 2 | 10253510 | Handle Assy Ref W |
|
- | |||||
| 2 | 10253508 | Ref Handle Assy Bk |
|
- | |||||
| 2 | 10253514 | Assy, Ref Hndl L |
|
- | |||||
| 3 | 10201509 | Cap, Door |
|
- | |||||
| 3 | 10201508 | Cap, Door |
|
- | |||||
| 4 | M0310338 | Plug Button Almond |
|
- | |||||
| 4 | M0310336 | Plug, Button (blk) |
|
- | |||||
| 4 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 5 | 10393803 | Bushing, Door (blk) |
|
- | |||||
| 5 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 6 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 6 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 6 | M0310730 | Plug Button (almond) |
|
- | |||||
| 7 | 10609801 | Retainer, Ref Door |
|
- | |||||
| 8 | 10481908E | Assy, Ref Dr Fm (blk) |
|
- | |||||
| 8 | 10481908W | Door |
|
- | |||||
| 8 | 10481908L | Assy Ref Door Fm |
|
- | |||||
| 9 | 10456818 | Gasket,ref Dr(black) |
|
- | |||||
| 9 | 10456805 | Gasket,ref Dr(white) |
|
- | |||||
| 10 | 10609701 | Liner, Refrig Door |
|
- | |||||
| 11 | 10422705 | Door, Dairy |
|
- | |||||
| 12 | 10310901 | Tray, Butter |
|
- | |||||
| 13 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 14 | 10185001 | Container |
|
- | |||||
| 15 | 10423120 | Bin, Egg |
|
- | |||||
| 16 | W11708403 | Stop-black Door (Replaces: 10447103) |
|
Immediately | $ 14.75 | ||||
| 16 | 10447102 | Stop, Door |
|
- | |||||
| 17 | 10447901 | Shim, Btm Hinge |
|
- | |||||
| 17 | 10447902 | Shim Hinge |
|
- | |||||
| 18 | 10825301 | Hinge, Btm (white) |
|
- | |||||
| 18 | 10575305 | Hinge, Bottom (almond) |
|
- | |||||
| 18 | 10825302 | Assy,hinge B-btm |
|
- | |||||
| 19 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 20 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 8.20 | ||||
| 21 | 10436504 | Tray, Egg |
|
- | |||||
| 22 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 23 | 10201810 | Cover, Handle Screw-blk |
|
- | |||||
| 23 | 10201806 | Cover- Hndl Screw Almond |
|
- | |||||
| 24 | M0310330 | Plug, Button White |
|
- | |||||
| 24 | M0310331 | Plug, Button Almond |
|
- | |||||
| 25 | 10183974 | Trim, Door Shelf |
|
- | |||||
| 26 | 10183975 | Trim, Door Shelf |
|
- | |||||
| 27 | 10613701 | Shelf, Dairy |
|
- | |||||
| 28 | 10613601 | Shelf, Server |
|
- | |||||
| 29 | 10441101 | Hugger, Bottle (shelf Divider) |
|
- | |||||
| 30 | 10468001 | Retainer, Tall Pkg |
|
- | |||||
| 31 | 10420001 | Shelf, Ref Door |
|
- | |||||
| 32 | 10202001 | Clip, Retainer |
|
- | |||||
| 33 | 10609301 | Xretainer, Refr Door |
|
- | |||||
| 34 | M0275163 | Tape Per Roll |
|
- | |||||
| 35 | 10431701 | Shelf, Snack Stop |
|
- | |||||
| 36 | 10431004 | Door, Snack Stop |
|
- | |||||
| 37 | M0219730 | Screw |
|
$ 7.65 | |||||
| 38 | 10462701 | Cover, Hinge Lower (black) |
|
- | |||||
| 38 | 10462704 | Cover-l Hinge Lw |
|
- | |||||
| 38 | 10462702 | Cover, Hinge Lower (white) |
|
- | |||||
| 39 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 12.18 | |||||
| 40 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 |
