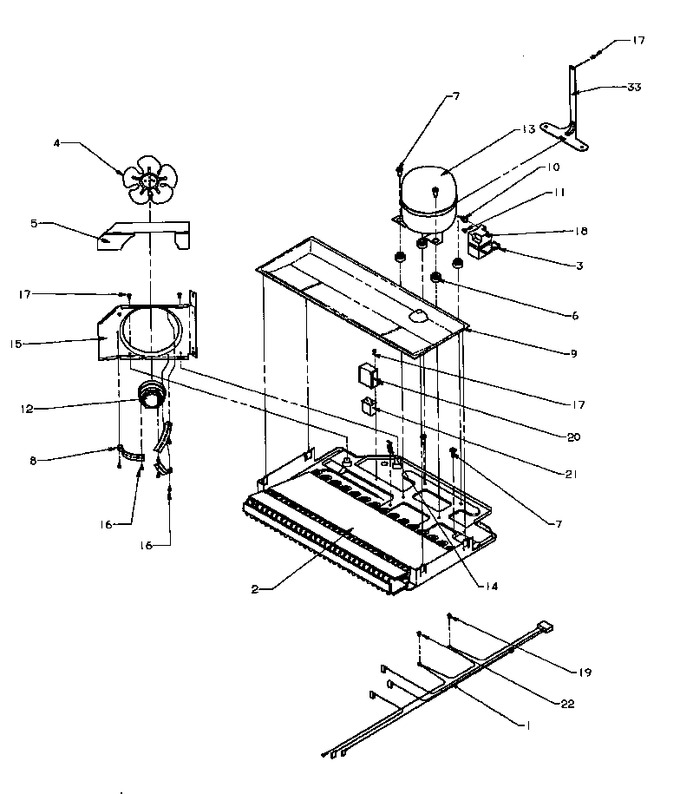

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10705801 | Harness, Mach. Comp. |
|
- | |||||
| 2 | 10481212 | Assy,cond/pan-e Ct |
|
- | |||||
| 3 | YB8358601 | Bale Strap |
|
- | |||||
| 4 | B5742602 | Blade, Fan |
|
- | |||||
| 5 | 10442702 | Gasket, Cond. Fan |
|
- | |||||
| 6 | WPW10169124 | Grommet, Compressor (Replaces: 10514101) |
|
$ 7.55 | |||||
| 7 | M0221548 | Screw, Shoulder |
|
- | |||||
| 8 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 9 | 10427403 | Pan, Drain |
|
- | |||||
| 10 | WP61006294 | Overload (Replaces: 10377002) |
|
$ 121.18 | |||||
| 11 | C8931505 | Relay, Ptc |
|
- | |||||
| 12 | 833697 | Motor, Fan (Replaces: 10448603) |
|
Immediately | $ 88.15 | ||||
| 13 | 10507825 | Compressor |
|
- | |||||
| 14 | B5667304 | Wire Clip |
|
- | |||||
| 15 | 10426904 | Shroud, Cond. Fan (e Coat) |
|
- | |||||
| 16 | M0223803 | Screw |
|
- | |||||
| 17 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 18 | C8960801 | Term Cover |
|
- | |||||
| 19 | M0253916 | Screw |
|
- | |||||
| 20 | 10266401 | Shield-capacitor |
|
- | |||||
| 21 | WPW10662129 | Capacitor (Replaces: C8931607) |
|
Immediately | $ 58.86 | ||||
| 22 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 23 | 10741101 | Brace, Back Oc |
|
- |
