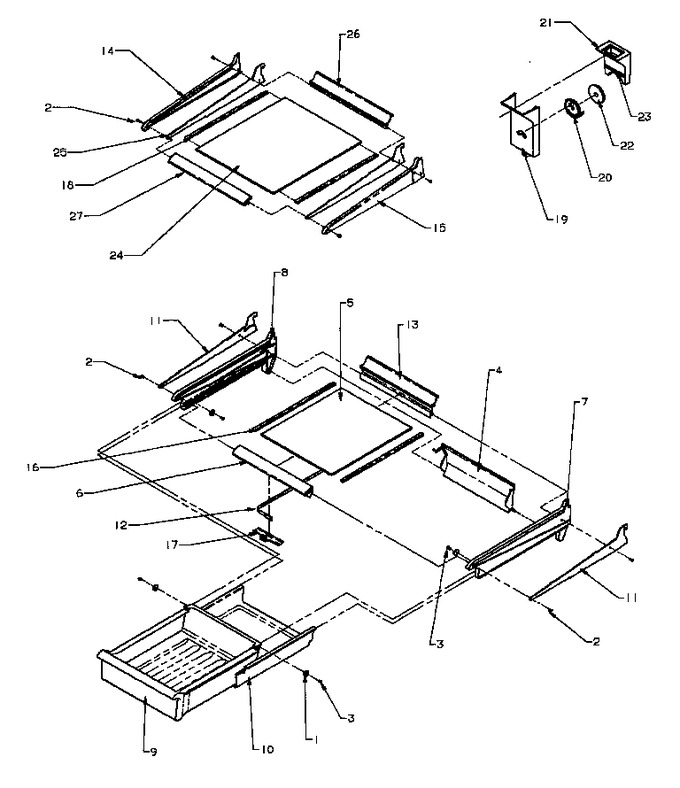

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10481001		Roller, Pan				$ 10.99
2	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
3	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
4	10445703		Scoop, Air		Appelez-nous	-
5	Y10370062		Glass, Shelf		Appelez-nous	-
6	10450306		Extr, Mt Kpr Frt		Appelez-nous	-
7	10417301		Glide, Meat Kpr.		Appelez-nous	-
8	10432101		Glide, Meat Kpr.		Appelez-nous	-
9	10629201		Pan, Mt Kpr		Appelez-nous	-
10	10629301		Sleeve, Mk		Appelez-nous	-
11	10681402		Rail, Pntd		Appelez-nous	-
11	10681403		Rail, Pnt		Appelez-nous	-
12	10454002		Band, Meat Kpr. Cont.		Appelez-nous	-
13	10451403		Extr, Mt Kpr Rear		Appelez-nous	-
14	10436603		Cover, Glass Shelf Rail		Appelez-nous	-
15	10436604		Cover, Glass Shelf Rail		Appelez-nous	-
16	10562502		Ext, Gl Shelf Side		Appelez-nous	-
17	10588201		Slide, Mtkp Cont.		Appelez-nous	-
18	10562502		Ext, Gl Shelf Side		Appelez-nous	-
19	10642101		Cover, Mk Air Sply		Appelez-nous	-
20	10479401		Control, Mt. Kpr. Air Sup		Appelez-nous	-
21	10479103		Tunnel, Mt Kpr		Appelez-nous	-
22	10565701		Insert, Mk Control		Appelez-nous	-
23	A3189340		Gasket Foam		Appelez-nous	-
24	Y10370062		Glass, Shelf		Appelez-nous	-
25	10681402		Rail, Pntd		Appelez-nous	-
26	10436903		Extr, Glass Shelf Rear		Appelez-nous	-
27	10436806		Extr, Glass Shelf Frt		Appelez-nous	-
NI	10480711		Assy, Split Shelf		Appelez-nous	-
