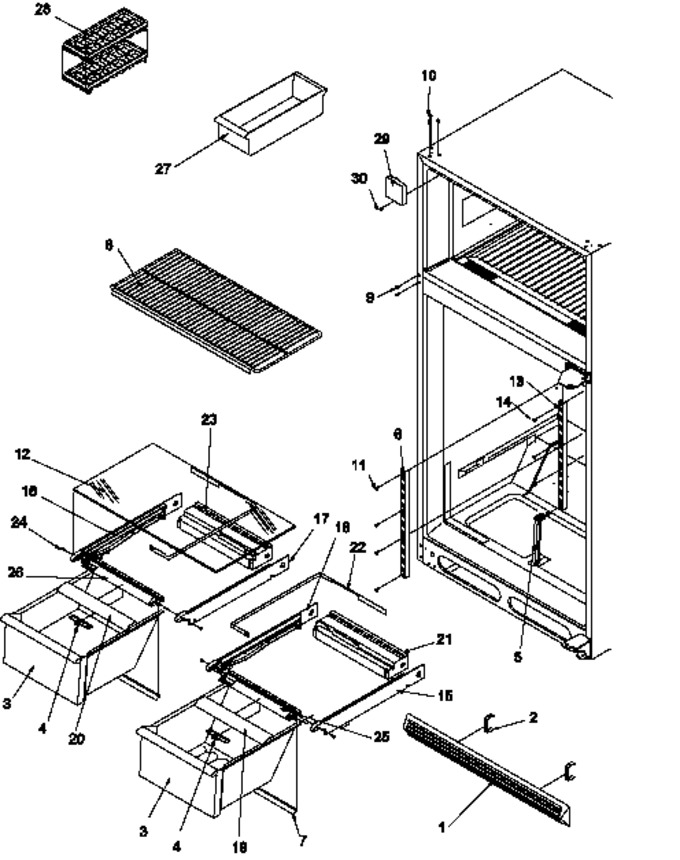

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10474902		Grille, Toe (white) (19)		Appelez-nous	-
2	10551502		Clip, Toe Grille				$ 5.84
3	10430216		Pan-crisper		Appelez-nous	-
4	10797501		Slide, Crisper		Appelez-nous	-
5	10461901		Post, Crisper Support			Immediately	$ 25.85
6	D7599002		Ladder, Center		Appelez-nous	-
7	10530202		Seal, Crisper		Appelez-nous	-
8	Y10440001		Shelf, Wire Frz. (18)		Appelez-nous	-
9	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
10	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 5.98
11	M0230923		Screw		Appelez-nous	-
12	10370016		Glass, Shelf (18)		Appelez-nous	-
13	D7599105		Ladder, Side		Appelez-nous	-
14	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
15	10432701		Rail, Side Crisper		Appelez-nous	-
16	10432702		Rail, Side Crisper		Appelez-nous	-
17	10432803		Rail, Ctr. Crisper		Appelez-nous	-
18	10432804		Rail, Ctr. Crisper		Appelez-nous	-
19	10688027		Extr-r Crisp Fr		Appelez-nous	-
20	10688026		Extr-l Crisp Fr		Appelez-nous	-
21	10433805		Rail, Crisper Back		Appelez-nous	-
22	10467802		Band, Crisper Control (18-19)		Appelez-nous	-
23	10435605		Rail, Crisper Back		Appelez-nous	-
24	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
25	10687701		Rail, Crisper Fr0nt(r)		Appelez-nous	-
26	10687702		Rail, Crisper Front(l)		Appelez-nous	-
NI	10698519		Crisper Frame Ass3embly		Appelez-nous	-
