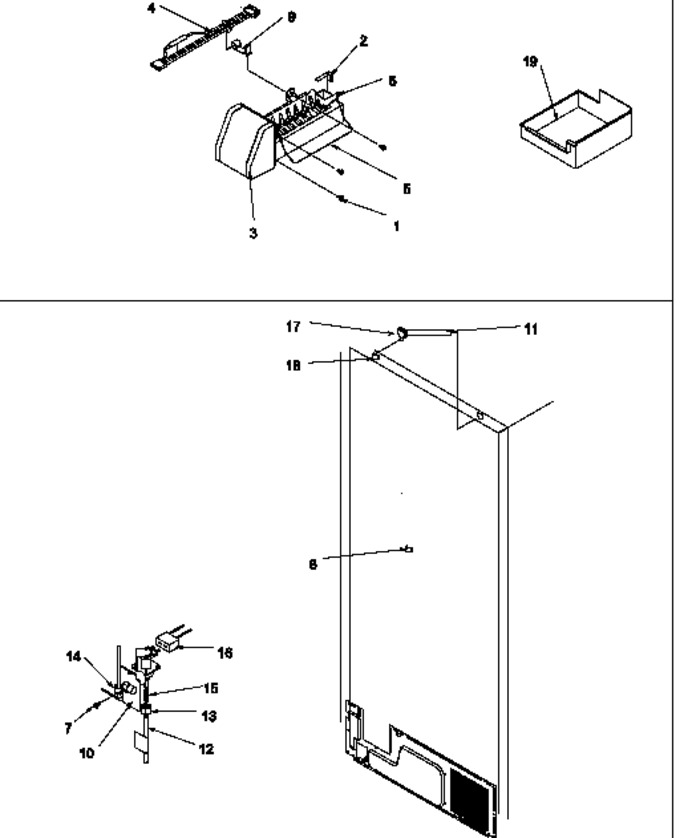

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 2 | B5720301 | Clip |
|
- | |||||
| 3 | WPW10289690 | Cover, Ice Maker (Replaces: 10519801) |
|
Immediately | $ 8.82 | ||||
| 4 | WPD7813010 | Harness, Ice Maker Mod (Replaces: D7813004) |
|
Immediately | $ 73.97 | ||||
| 5 | WP67004028 | Arm, I.m. Shut-off (Replaces: 10884401) |
|
Immediately | $ 95.92 | ||||
| 6 | D7824706Q | Ice Maker (Replaces: D7824703) |
|
Immediately | $ 167.35 | ||||
| 7 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 8 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 8.17 | |||||
| 9 | 10526701 | Clamp, Wire |
|
- | |||||
| 10 | W10833899 | Kit, Water Valve (Replaces: 10524606) |
|
Immediately | $ 253.55 | ||||
| 11 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) |
|
Immediately | $ 119.86 | ||||
| 12 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 13.05 | |||||
| 13 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 14 | M0108001 | Clamp, Tube |
|
- | |||||
| 15 | A1055101 | Spring, Antikink |
|
- | |||||
| 16 | 10525901 | Harness, Water Valve |
|
$ 8.02 | |||||
| 17 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 18 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 19 | WP67001255 | Use 10476207 (Replaces: 10476201) |
|
$ 213.23 |
