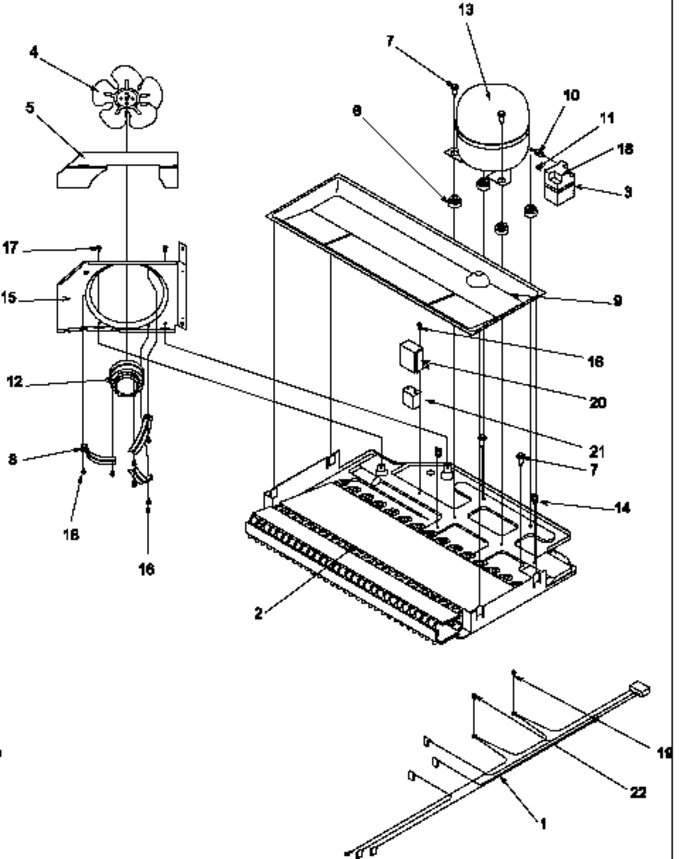

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10705802 | Harness, Mach Comp |
|
- | |||||
| 2 | 10481216 | Assy,cond/pan-e Ct |
|
- | |||||
| 3 | YB8358601 | Bale Strap |
|
- | |||||
| 4 | B5742604 | Blade, Fan |
|
- | |||||
| 5 | 10442702 | Gasket, Cond. Fan |
|
- | |||||
| 6 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 7 | M0221523 | Screw, Shldr |
|
- | |||||
| 8 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 9 | 10427401 | Pan, Drain |
|
- | |||||
| 10 | 10377016 | Overload |
|
- | |||||
| 11 | 2154436 | Relay-ptc (Replaces: 10097205) |
|
$ 141.69 | |||||
| 12 | 833697 | Motor, Fan (Replaces: 10522102) |
|
Immediately | $ 88.15 | ||||
| 13 | W10309994 | Kit,compressor-tpb1390yxa (Replaces: 10927201) |
|
Immediately | $ 643.55 | ||||
| 14 | B5667304 | Wire Clip |
|
- | |||||
| 15 | 10426904 | Shroud, Cond. Fan (e Coat) |
|
- | |||||
| 16 | M0223803 | Screw |
|
- | |||||
| 17 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 18 | C8960801 | Term Cover |
|
- | |||||
| 19 | M0253916 | Screw |
|
- | |||||
| 20 | 10266402 | Shield, Capacitor |
|
- | |||||
| 21 | WPW10662129 | Capacitor (Replaces: C8931607) |
|
Immediately | $ 58.86 | ||||
| 22 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 |
