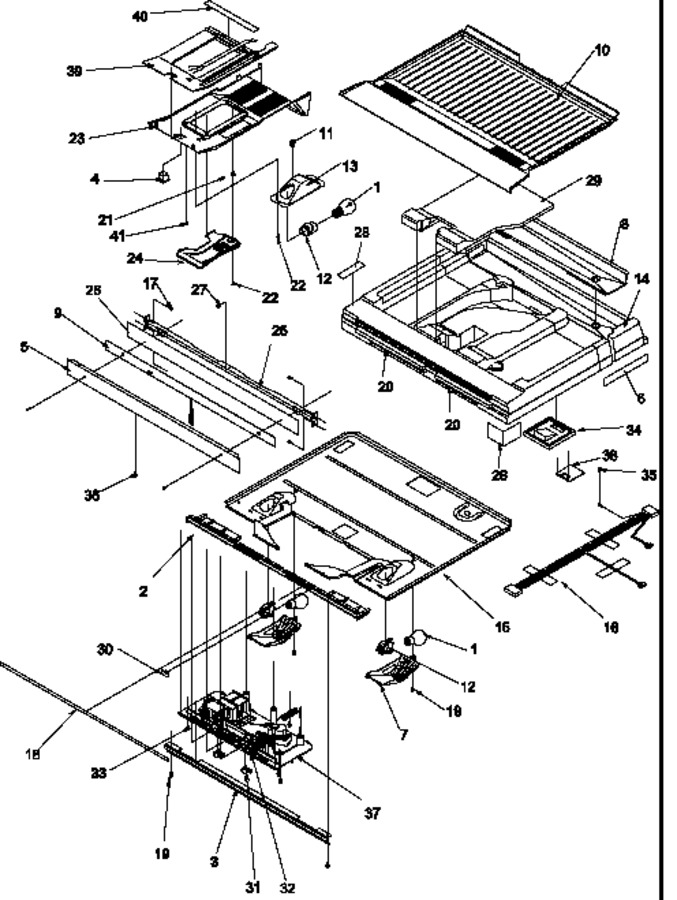

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
2	10435511		Frame, Ref Top Brk		Appelez-nous	-
3	10645601		Extrusion, Refr Light		Appelez-nous	-
4	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
5	10433346		Mullion, Center (white)		Appelez-nous	-
6	10685507		Gasket, Sealing		Appelez-nous	-
7	10508701		Shield, Refrig. Light		Appelez-nous	-
8	10435911		Tray, Drip		Appelez-nous	-
9	10543601		Heater Mull.		Appelez-nous	-
10	10995001		Bottom, Frz		Appelez-nous	-
11	B5733302		Clip, Ground		Appelez-nous	-
12	D7714406		Socket, Angle		Appelez-nous	-
13	C8730103		Housing-light		Appelez-nous	-
14	10996001		Assy Drain Block		Appelez-nous	-
15	12035206		Ref Top-e Ct		Appelez-nous	-
16	10573504		Harness, Mullion		Appelez-nous	-
17	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
18	10450830		Membrane, Breaker		Appelez-nous	-
19	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
20	10772301		Insulation		Appelez-nous	-
21	M0580007		Grommet, Screw		Appelez-nous	-
22	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
23	10440403		Duct, Frz Air		Appelez-nous	-
24	10678401		Shield, Frz Light		Appelez-nous	-
25	10433610		Plate, Center Top		Appelez-nous	-
26	B0523584		Insulation Per Ft.		Appelez-nous	-
27	M0253916		Screw		Appelez-nous	-
28	B5759626		Gasket, Sealing		Appelez-nous	-
29	10476401		Insert-drain Blk		Appelez-nous	-
30	10453001		Cap, Switch		Appelez-nous	-
31	10565401		Knob, Control		Appelez-nous	-
32	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
33	M0224128		Screw		Appelez-nous	-
34	10995201		Insert-mk Air Sply		Appelez-nous	-
35	WP489399		Screw   (Replaces: M0232903)				$ 7.30
36	M0211520		Screw - Sm		Appelez-nous	-
37	Y00000000		See Note Control Assembly -- (see Page 24 And 25 For Parts Breakdown)		Appelez-nous	-
38	10594901		Gasket, Mk Air Supply		Appelez-nous	-
39	10779601		Insul. Air Duct		Appelez-nous	-
40	B8386613		Gasket		Appelez-nous	-
