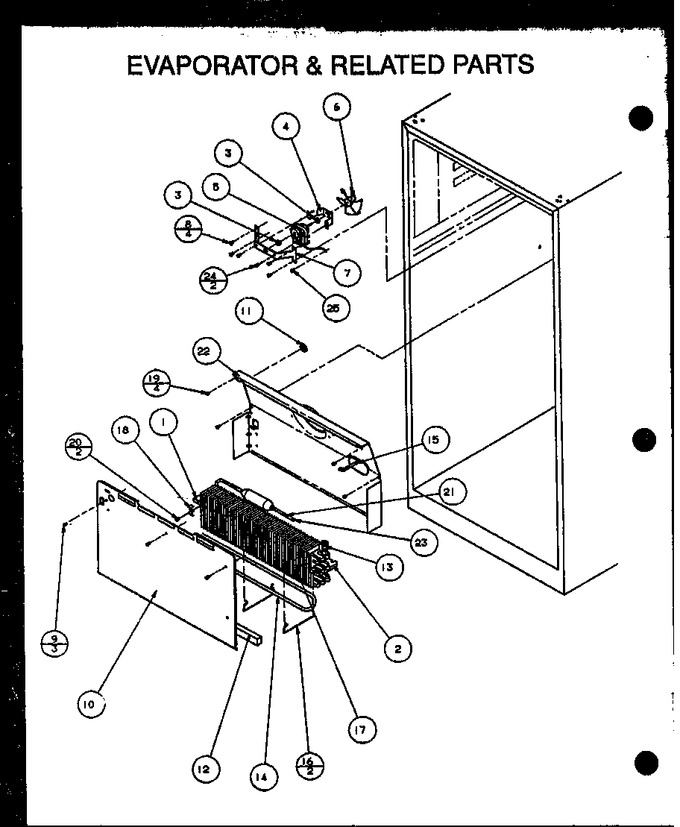

03 - Evap & Related Parts


04 - Fz Door Assy


05 - Miscellaneous Exterior Parts


06 - Page 6


07 - Ref Door Assy


08 - Shelves & Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8322902		Block Evap. Coil		Appelez-nous	-
2	B8361701		Block Evap Coil		Appelez-nous	-
3	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
4	C8881301		Brkt Evap Fan		Appelez-nous	-
5	WPC8891605		Motor, Evap Fan   (Replaces: C8891605)				$ 344.82
6	C8927801		Blade, Evap Fan		Appelez-nous	-
7	D7524502		Brkt Evap Fan Shroud		Appelez-nous	-
8	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
9	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
10	D7874503		Evap Cover		Appelez-nous	-
11	A3138301		Grommet		Appelez-nous	-
12	A3189320		Gasket, Foam		Appelez-nous	-
13	WP10442411		Thermostat, Defrost   (Replaces: C8978402)			Immediately	$ 44.02
14	D7549705		Heater, Evaporator		Appelez-nous	-
15	D7759002		Assy, Heat Exch.		Appelez-nous	-
16	C8952001		Clip		Appelez-nous	-
17	R0170032		Evaporator Assembly		Appelez-nous	-
18	A3253803		Clamp		Appelez-nous	-
19	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
20	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
21	M0321204		Wire Tie		Appelez-nous	-
22	D7691118		Evap Fan Shroud		Appelez-nous	-
23	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
24	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
25	M0253916		Screw		Appelez-nous	-
