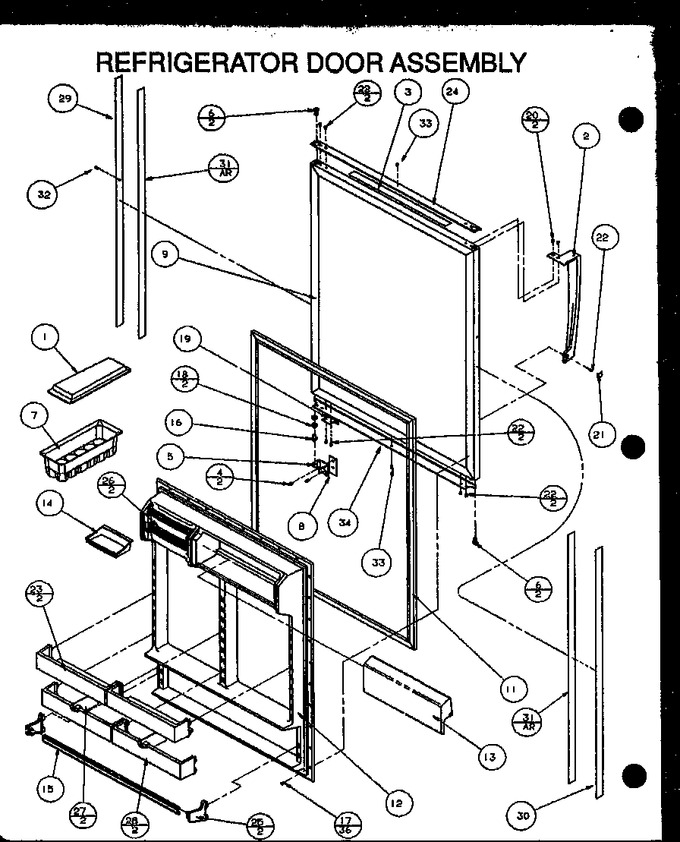

86855 (BOM: P1116907W E) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	D7805909	Cover, Egg Bucket	Appelez-nous	-
2	10253508	Ref Handle Assy Bk	Appelez-nous	-
3	M0275163	Tape Per Roll	Appelez-nous	-
4	WP67006715	Screw (Replaces: M0233847)			$ 7.55
5	10163607	Btm Hinge Brkt E	Appelez-nous	-
6	10392601	Bushing	Appelez-nous	-
6	10392602	Bushing	Appelez-nous	-
7	D7695616	Egg Bucket	Appelez-nous	-
8	10399501	Kit,btm Hinge Shim	Appelez-nous	-
8	10399502	Kit,btm Hinge Shim	Appelez-nous	-
9	10253913E	Ref Door Foam Assembly, Ebony	Appelez-nous	-
11	D7605120	Gasket	Appelez-nous	-
12	D7805605	Inner Door Liner Ref	Appelez-nous	-
13	D7805708	Door Dairy	Appelez-nous	-
14	10310901	Tray, Butter	Appelez-nous	-
15	C8907223	Retainer Pkg	Appelez-nous	-
16	C8814901	Pin, Hinge K	Appelez-nous	-
17	M0219730	Screw			$ 7.65
18	M0274049	Washer	Appelez-nous	-
19	10266105	Stop- Door	Appelez-nous	-
20	M0221729	Screw	Appelez-nous	-
20	WPW10348409	Screw (Replaces: M0222429)		Immediately	$ 8.20
21	10201810	Cover, Handle Screw-blk	Appelez-nous	-
22	M0210431	Screw	Appelez-nous	-
22	WPW10348409	Mounting Screw (Replaces: M0203944)		Immediately	$ 8.20
23	D7565413	Door Shelf V	Appelez-nous	-
24	10339806	Trim, Top Frz/referig	Appelez-nous	-
25	D7681804	Cap, Pkg Retainer End	Appelez-nous	-
25	D7681803	Cap, Pkg Retainer End	Appelez-nous	-
26	D7806403	Container Sec. Ser.	Appelez-nous	-
27	D7806103	Snugger Door	Appelez-nous	-
28	D7574513	Ret Cont. Pkg V	Appelez-nous	-
29	10339724	Trim	Appelez-nous	-
30	10339723	Trim	Appelez-nous	-
31	M0275148	Tape Per Roll K	Appelez-nous	-
32	M0310713	Plug	Appelez-nous	-
33	W11245710	Screw, Sm (stnls) (Replaces: M0210417)		Immediately	$ 14.75
34	10339902	Trim, Frz Dr. Bottom	Appelez-nous	-
