86855 (BOM: P1116907W E) | Leon's : Appliance Model Lookup

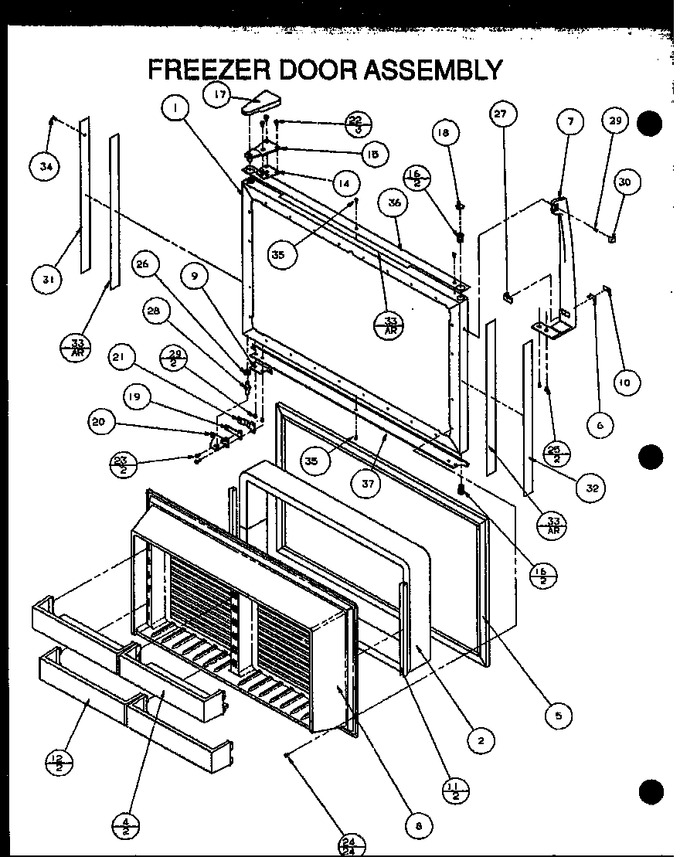

Diagram #	Part Number	Description	Availability	Ships	Price
1	10253814E	Fz Door Foam Assembly	Appelez-nous	-
2	876370	Insulation Bott (1= 1ft) (Replaces: B0523588)			$ 243.14
4	D7869907	Door Shelf	Appelez-nous	-
5	D7605119	Gasket - Door, Black	Appelez-nous	-
6	10184501	Pad Nameplate	Appelez-nous	-
7	10253507	Fz Handle Assy Bk	Appelez-nous	-
8	D7869601	Inner Door, Frz	Appelez-nous	-
9	10266105	Stop- Door	Appelez-nous	-
10	10184401	Nameplate, Handle	Appelez-nous	-
11	C8987106	Seal Door Dike	Appelez-nous	-
12	D7869807	Retainer, Cant. V	Appelez-nous	-
14	B8389002	Shim Top Hinge	Appelez-nous	-
14	B8389001	Shim, Top Hinge	Appelez-nous	-
14	B8389003	Shim, Top Hinge, .016	Appelez-nous	-
15	B5744301	Hinge	Appelez-nous	-
16	10392602	Bushing	Appelez-nous	-
17	D7872107	Cover, Hinge	Appelez-nous	-
18	M0310605	Plug	Appelez-nous	-
19	B8351405	Shim, Center Hinge	Appelez-nous	-
19	B8351404	Shim, Center Hinge	Appelez-nous	-
20	C8948601	Center Hinge Bracket	Appelez-nous	-
21	C8925502	Strip Hinge Top	Appelez-nous	-
22	R9800670	Kit, Screw (Replaces: M0226331)			$ 10.58
23	W11573362	Screw, T. F. (Replaces: M0226233)			$ 14.72
24	M0219730	Screw			$ 7.65
25	WPW10348409	Screw (Replaces: M0222429)		Immediately	$ 8.20
25	M0221729	Screw	Appelez-nous	-
26	M0274049	Washer	Appelez-nous	-
27	10184305	Plug Nameplate	Appelez-nous	-
28	B8373101	Center Pin Hinge	Appelez-nous	-
29	WPW10348409	Mounting Screw (Replaces: M0203944)		Immediately	$ 8.20
29	M0210431	Screw	Appelez-nous	-
30	10201809	Cover, Handle Screw-blk	Appelez-nous	-
31	10339720	Trim	Appelez-nous	-
32	10339719	Trim, Verticle Freezer	Appelez-nous	-
33	M0275148	Tape Per Roll K	Appelez-nous	-
34	M0310713	Plug	Appelez-nous	-
35	W11245710	Screw, Sm (stnls) (Replaces: M0210417)		Immediately	$ 14.75
36	10339805	Trim-top Fz	Appelez-nous	-
37	10339903	Trim, Bottom Frz-refrig	Appelez-nous	-
