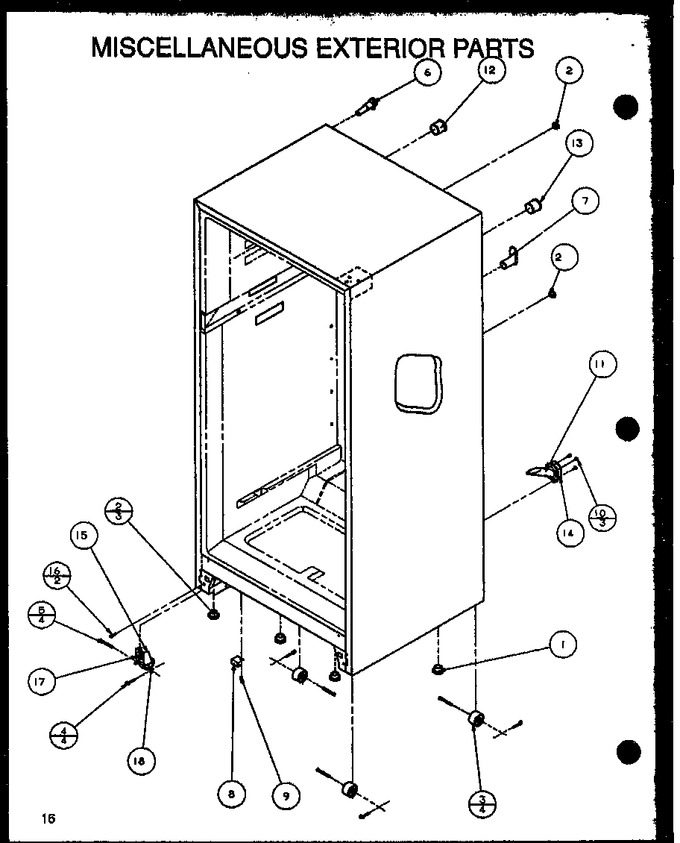

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 2 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 3 | M0520102 | Roller |
|
- | |||||
| 4 | M1200004 | Cotter Pin K |
|
- | |||||
| 5 | M1200202 | Pin K |
|
- | |||||
| 6 | 10277306 | Assy, Fill Tube |
|
- | |||||
| 7 | B5749501 | Tunnel-heat Ex |
|
- | |||||
| 8 | 10161301 | Holder Tube |
|
- | |||||
| 9 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 10 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 11 | 10163201 | Elbow Drain Tube |
|
- | |||||
| 12 | 10110401 | Tunnel, Wire |
|
- | |||||
| 13 | 10110502 | Tunnel Wire |
|
- | |||||
| 14 | A31320301 | Gasket, Drain Tube |
|
- | |||||
| 15 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 16 | M0204339 | Screw Bolt K |
|
- | |||||
| 17 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 18 | M1205302 | Rivet |
|
$ 5.85 | |||||
| NI | C8956101 | Assy, Roller Bracket |
|
- |
