Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 965568 Panel, Control Appelez-nous -
2 965569 Insert, Control Panel Appelez-nous -
3 965570 Timer Appelez-nous -
4 WP4314961 Switch, Rocker   (Replaces: 965330) Special Order $ 93.95

5 965571 Screw, Timer Appelez-nous -
6 965486 Knob, Timer Appelez-nous -
7 965572 Clamp 18`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

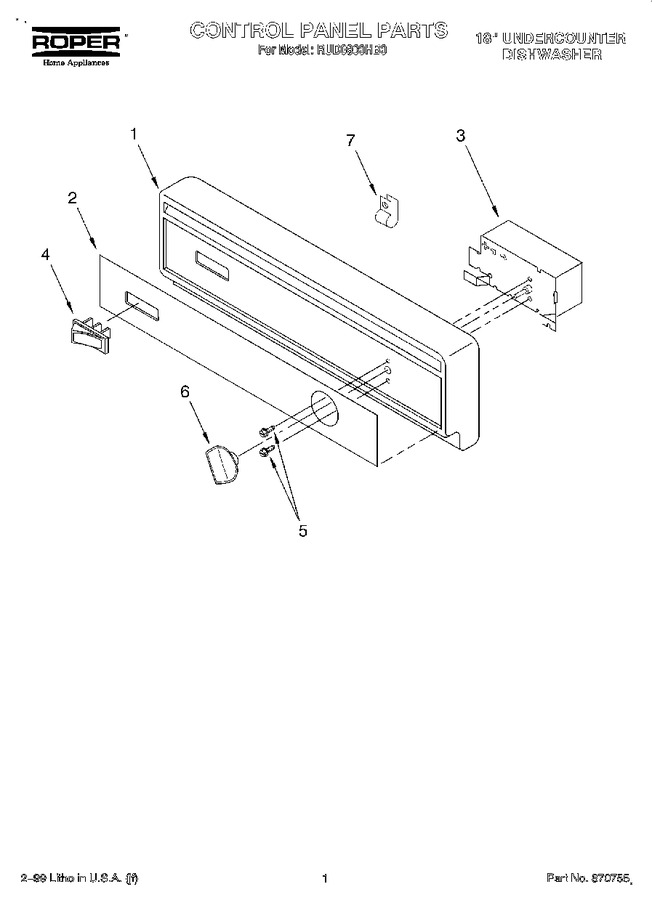

Diagram for RUD0800HB0
