SELECT A DIAGRAM

01 - Control Panel


02 - Tub

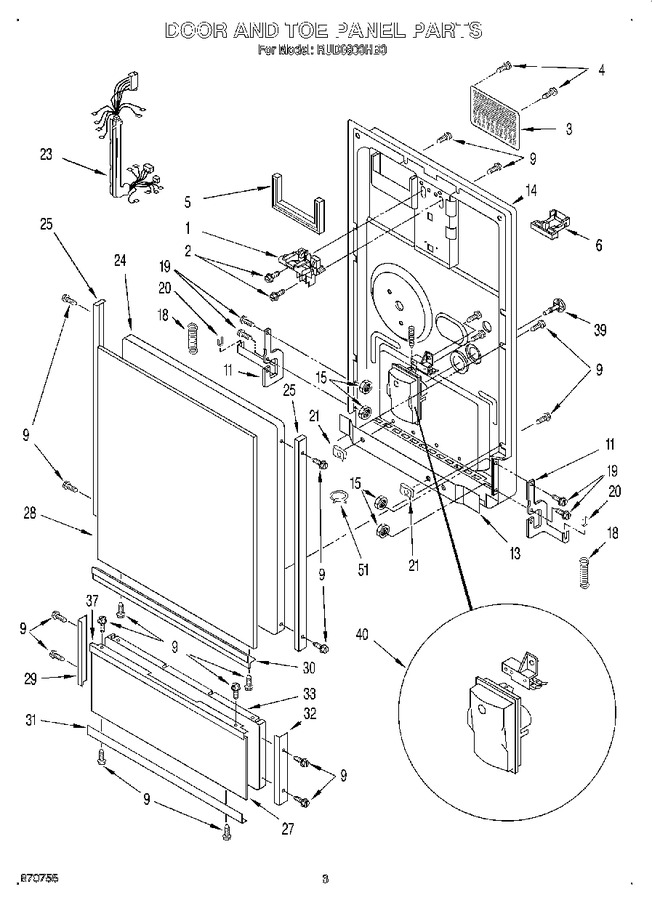

03 - Door And Toe Panel


04 - Frame


05 - Pump And Sprayarm


06 - Dishrack, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965576		Latch Assembly		Appelez-nous	-
2	965488		Screw, 8 X 5/8		Appelez-nous	-
3	965505		Cover, Vent		Appelez-nous	-
4	965506		Screw, Vent Cover		Appelez-nous	-
5	965507		Gasket, Vent Cover		Appelez-nous	-
6	965577		Handle, Door		Appelez-nous	-
9	965578		Screw, 8 X 3/8		Appelez-nous	-
11	965489		Arm Assembly (r.h. & L.h.)		Appelez-nous	-
13	965490		Seal, Baffle		Appelez-nous	-
14	965574		Door, Inner		Appelez-nous	-
15	965492		Nut, Arm Assembly		Appelez-nous	-
18	965493		Spring, Door		Appelez-nous	-
19	965494		Screw, Arm Assembly		Appelez-nous	-
20	965181		Pad, Spring		Appelez-nous	-
21	965495		Speednut, Baffle		Appelez-nous	-
23	965573		Harness, Wiring		Appelez-nous	-
24	965497		Panel, Door		Appelez-nous	-
25	965459		Trim, Side Door		Appelez-nous	-
27	965498		Insert, Access Panel (white & Clear)		Appelez-nous	-
28	965561		Insert, Door Panel (white & Clear)		Appelez-nous	-
29	965500		Trim, Access Panel - L.h.		Appelez-nous	-
30	965501		Trim, Door Bottom		Appelez-nous	-
31	965413		Trim, Access Panel Bottom		Appelez-nous	-
32	965559		Trim, Access Panel - R.h.		Appelez-nous	-
33	965502		Panel, Access		Appelez-nous	-
37	965339		Trim, Access Panel Top		Appelez-nous	-
39	965504		Plug, Fill		Appelez-nous	-
40	WPW10247183		Body Assembly   (Replaces: 965575)				$ 393.19
51	965499		Panel, Door & Access		Appelez-nous	-
51	965579		Clamp, Wire		Appelez-nous	-
