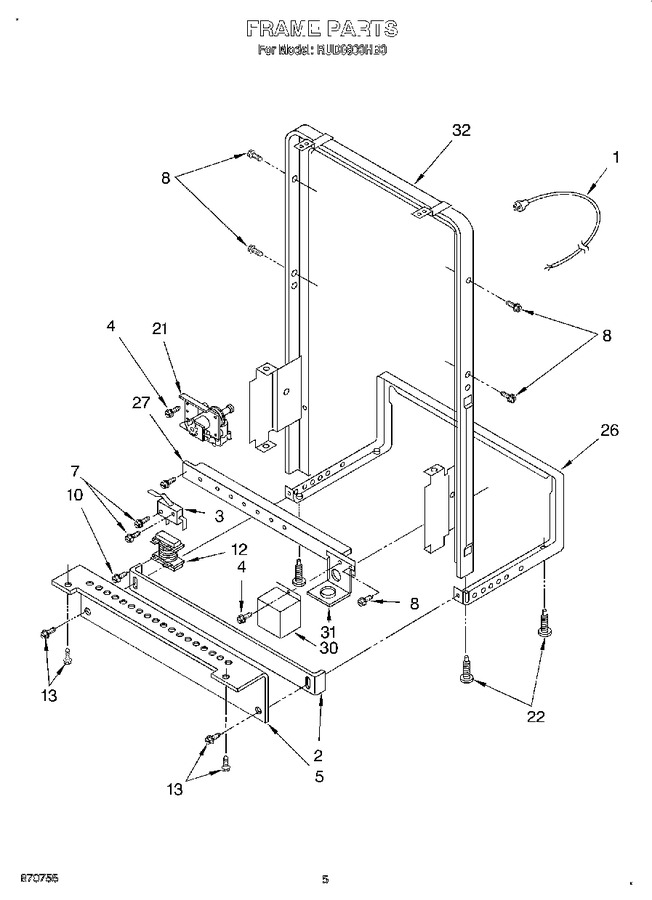

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Tub
03 - Door And Toe Panel
04 - Frame
05 - Pump And Sprayarm
06 - Dishrack, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 965337 | Power Cord (optional) |
|
- | |||||
| 2 | 965585 | Toeplate, Adjustable |
|
- | |||||
| 3 | 965520 | Switch, Float |
|
- | |||||
| 4 | 965510 | Screw, 10-32 X 3/8 |
|
- | |||||
| 5 | 965586 | Toeplate |
|
- | |||||
| 7 | 965522 | Screw, 10 X 5/8 |
|
- | |||||
| 8 | 4340341 | Screw, 10-10 X 9/16 |
|
- | |||||
| 10 | 4340129 | Screw, Relay |
|
- | |||||
| 12 | 965465 | Relay, Motor |
|
- | |||||
| 13 | 4340701 | Screw, 8a X 3/8 |
|
- | |||||
| 21 | WPR9800089 | Valve, Inlet (Replaces: 965512) |
|
$ 197.74 | |||||
| 22 | 965513 | Levelers (4) |
|
- | |||||
| 26 | 965514 | Frame, Rear |
|
- | |||||
| 27 | 965519 | Brace, Front |
|
- | |||||
| 30 | 965515 | Cover, Junction Box |
|
- | |||||
| 31 | 965516 | Bracket, Junction Box |
|
- | |||||
| 32 | 965517 | Frame Assy., Front |
|
- |
