| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

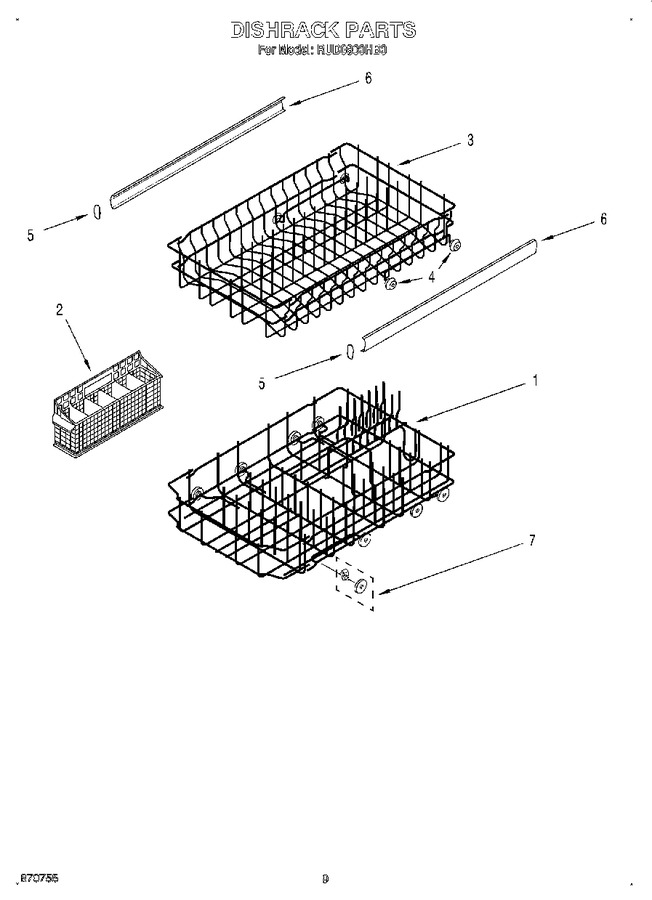

| 1 | 965550 | Dishrack, Lower (includes Item 7) |
|
- | |||||
| 2 | 965551 | Basket, Silverware |
|
- | |||||
| 3 | 965552 | Dishrack, Upper (includes Item 4) |
|
- | |||||
| 4 | 965553 | Wheel Assembly, Upper Rack (4) |
|
- | |||||
| 5 | 5300809927 | End Cap, Slide (4) (Replaces: 965554) |
|
Immediately | $ 4.10 | ||||
| 6 | 965555 | Slide, Rack (2) |
|
- | |||||
| 7 | 965556 | Wheel Assembly, Lower Rack (4) |
|
- | |||||
| 4340107 | Tool, Pump Seal Installation |
|
- | ||||||
| W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 47.66 | ||||||
| LIT965558 | Guide, Energy |
|
- | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | ||||||
| 799640 | Kit, Epoxy Patch (white) |
|
- | ||||||
| 675677 | Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks) |
|
- | ||||||
| WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 53.65 | |||||
| 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 38.83 | |||||
| WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 39.58 | |||||
| 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 48.32 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| LIT965557 | Instructions, Installation |
|
- | ||||||
| LIT965567 | Guide, Use & Care |
|
- |
