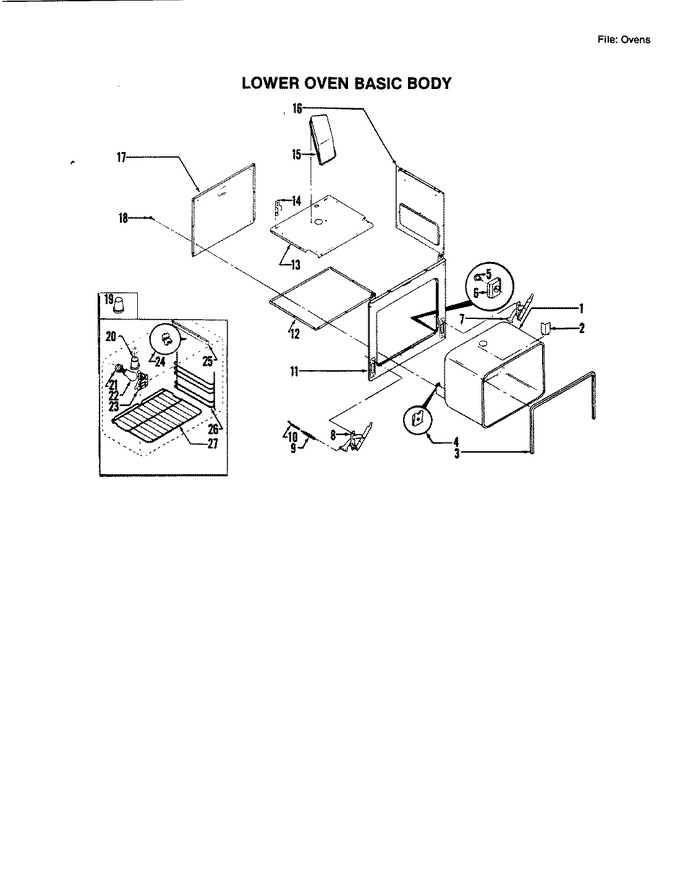

01 - Body (lower)
02 - Body-upper
03 - Control Panel
04 - Controls
05 - Door (lower)
06 - Door (upper)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701585 | Liner, Wrapper |
|
- | |||||
| 2 | 771214 | Spacer-vent Tube |
|
- | |||||
| 3 | 700777 | Seal-door |
|
- | |||||
| 4 | 771079 | Fastener-clip |
|
- | |||||
| 5 | 771109 | Grommet |
|
- | |||||
| 6 | 771213 | Spacer-front Frame |
|
- | |||||
| 7 | 771034 | Cam Door (r.h.) |
|
- | |||||
| 8 | 771033 | Cam Door (l.h.) |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 9 | 771222 | Spring-door (l&r) |
|
- | |||||
| 10 | 701586 | Bracket, Door |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 11 | 700091 | Main Front |
|
- | |||||
| 12 | 771009 | Base-main (inner) |
|
- | |||||
| 13 | 700120 | Base0main (outer) |
|
- | |||||
| 14 | 700096 | Support-rear Oven (l&r) |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 15 | 700113 | Duct-air Vent |
|
- | |||||
| 16 | 771263 | Wrapper-side (inner) |
|
- | |||||
| 17 | 700773 | Wrapper-back (inner) |
|
- | |||||
| 17 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 18 | 700097 | Insulation |
|
- | |||||
| 18 | 771176 | Screw |
|
- | |||||
| 18 | 700098 | Insulation |
|
- | |||||
| 18 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 19 | WPA0317601 | Terminal-bombnose (Replaces: 771240) |
|
$ 7.86 | |||||
| 20 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 20 | 700771 | Tube Vent |
|
- | |||||
| 21 | 700755 | Spring, Oven Door |
|
- | |||||
| 22 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) |
|
Immediately | $ 16.80 | ||||
| 23 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 23 | 700778 | Light Shield |
|
- | |||||
| 24 | 700776 | Fastener-thermo Bulb Clip |
|
$ 1,169.54 | |||||
| 25 | 700103 | Angle-bulb-shield |
|
- | |||||
| 25 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 13.25 | ||||
| 26 | 701587 | Glide, Rack |
|
- | |||||
| 27 | 700123 | Insulator |
|
- | |||||
| 27 | 771156 | Rack-oven |
|
- | |||||
| 27 | 771183 | Screw |
|
- | |||||
| 27 | 700745 | Fastener |
|
- | |||||
| 27 | 700122 | Tube Clip |
|
- |
