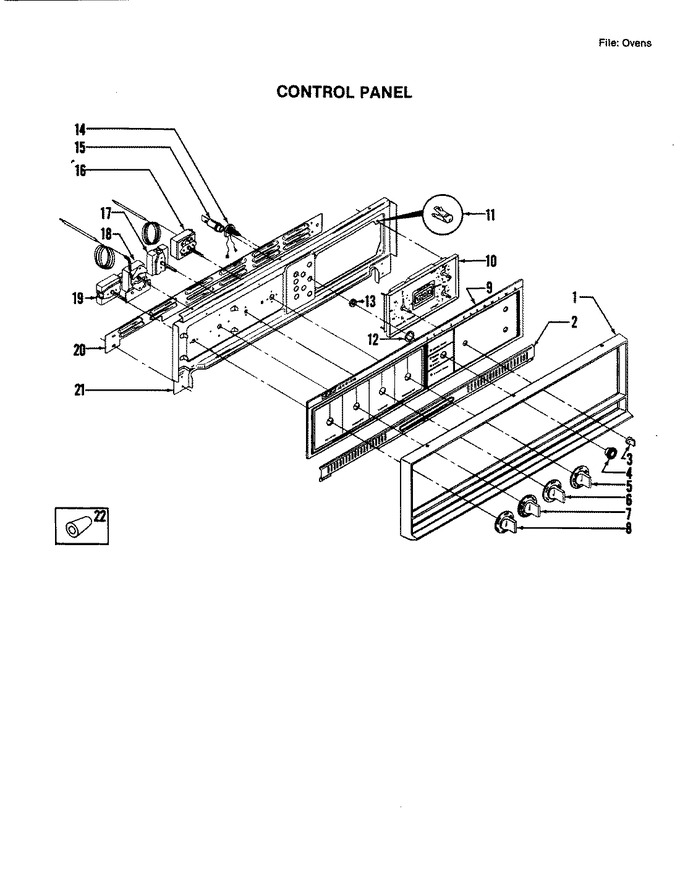

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	771247		Frame		Appelez-nous	-
2	771249		Vent, Trim		Appelez-nous	-
3	700437		Clock Knob			Immediately	$ 14.47
4	771012		Switch, Bezel		Appelez-nous	-
5	701571		Thermometer Knob (lower)		Appelez-nous	-
6	701572		Knob, Selector		Appelez-nous	-
7	701332		Thermometer Knob (upper)		Appelez-nous	-
8	00701333		Select, Knob   (Replaces: 701333)			Immediately	$ 271.69
9	701573		Glass		Appelez-nous	-
10	700436		Clock				$ 26.67
11	771080		Clock Fastener		Appelez-nous	-
12	771167		Ring		Appelez-nous	-
14	771225		Switch, Oven Light		Appelez-nous	-
15	771116		Lock Light		Appelez-nous	-
15	771117		Clean Light		Appelez-nous	-
16	DE81-05323A		Thermostat, Oven   (Replaces: 701577)				$ 346.02
17	DE81-10269A		Switch, Selector   (Replaces: 701296)				$ 1,220.82
18	701331		Thermostat, Upper		Appelez-nous	-
19	DE81-04650A		Selector, Switch (upper)   (Replaces: 701336)				$ 361.26
20	771203		Wire Shield		Appelez-nous	-
21	701335		Plate, Instrument Mounting		Appelez-nous	-
