Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701343 Liner, Oven Appelez-nous -
2 771214 Spacer-vent Tube Appelez-nous -
3 771079 Fastener-clip Appelez-nous -
4 771248 Trim-oven Vent Appelez-nous -
5 771092 Front-main Appelez-nous -
6 771034 Cam Door (r.h.) Appelez-nous -
7 771213 Spacer-front Frame Appelez-nous -
8 771109 Grommet Appelez-nous -
9 701344 Switch, Door Appelez-nous -
10 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

10 771033 Cam Door (l.h.) Appelez-nous -
11 771222 Spring-door (l&r) Appelez-nous -
12 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

12 771019 Bracket Appelez-nous -
13 771009 Base-main (inner) Appelez-nous -
14 771006 Baffle Appelez-nous -
15 771264 Wrapper Appelez-nous -
15 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

16 700753 Wrapper-back Appelez-nous -
17 771176 Screw Appelez-nous -
18 771255 Tube-oven Light Appelez-nous -
19 8009 Bulb, Oven (40 Watt Brass)   (Replaces: Y707319) In-Stock Immediately $ 18.67

20 771210 Socket-oven Light Appelez-nous -
21 771015 Bracket-oven Light Appelez-nous -
21 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

22 700754 Wrapper Back (outer) Appelez-nous -
23 771049 Conduit Appelez-nous -
24 771126 Insulator-bushing Appelez-nous -
25 701588 Connector Conduit Appelez-nous -
26 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

26 707123 Nut Appelez-nous -
26 WP7101P072-60 Screw   (Replaces: Y701589) Special Order $ 8.06

26 771149 Plate Grounding Appelez-nous -
27 771057 Cover Instrument (top) Appelez-nous -
28 701590 Bracket (l&r) Appelez-nous -
29 771140 Motor Appelez-nous -
30 M0282005 Nut, Hex   (Replaces: Y701591) Special Order $ 8.24

30 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

30 771074 Blade Appelez-nous -
31 771058 Cover-instrument Appelez-nous -
32 DE81-03605A Duct, Air Vent   (Replaces: 700774) Special Order $ 129.36

33 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

34 771025 Bracket, Vent Actuator Appelez-nous -
35 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

35 771024 Bracket-vent Appelez-nous -
36 771036 Cap, Vent Rod Appelez-nous -
37 771164 Retainer-ring Clip Appelez-nous -
38 771258 Washer-vent Cover Appelez-nous -
39 771221 Spring-vent Closing Appelez-nous -
40 771168 Rod-vent Appelez-nous -
41 700761 Hex Nut Appelez-nous -
42 771230 Switch Fan Safety Appelez-nous -
43 771004 Baffle-top(l.h.) Appelez-nous -
43 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

43 771005 Baffle-top(r.h.) Appelez-nous -
44 700762 Shield Top Appelez-nous -
45 771013 Box-latch Mechanism Appelez-nous -
45 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

46 771182 Screw Appelez-nous -
46 771239 Terminal Block Appelez-nous -
47 771263 Wrapper-side (inner) Appelez-nous -
47 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

48 771113 Handle-solenoid Release Appelez-nous -
48 WP4159193 Screw   (Replaces: Y700757) Special Order $ 5.07

49 771050 Control-solenoid Appelez-nous -
50 700756 Door Latch Appelez-nous -
51 771191 Screw Appelez-nous -
51 771226 Switch Actuating Appelez-nous -
52 701345 Spring, Solenoid To Bracket Appelez-nous -
53 771219 Spring Door Latch Appelez-nous -
54 700759 Washer Appelez-nous -
54 WP4159193 Screw   (Replaces: Y700757) Special Order $ 5.07

54 771112 Handle-latching Mechanism Appelez-nous -
55 700760 Knob Door Latch Handle Appelez-nous -
56 701592 Fastener, Cable Appelez-nous -
57 DE81-07355A Clip, Front Frame   (Replaces: 701346) Special Order $ 401.04

58 771041 Clamp-purselock Appelez-nous -
59 771043 Clip-spring (door Latch) Appelez-nous -
60 701579 Terminal-bombnose Appelez-nous -
61 700766 Fastener-cable Clamp Appelez-nous -
62 700162 Insert-broiler Pan Appelez-nous -
63 12045163 Pan, Broiler   (Replaces: 701347) Special Order $ 322.55

64 DE81-09345A Retained Catalyst   (Replaces: 700770) Special Order $ 6.19

65 700769 Filter-catalyst Appelez-nous -
66 700771 Tube Vent Appelez-nous -
67 701594 Lens, Glass Appelez-nous -
68 DE81-03207A Gasket, Lens   (Replaces: 701348) Special Order $ 738.24

69 771046 Collar-lens Appelez-nous -
69 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

70 771062 Cover-vent Appelez-nous -
71 00701349 Tube, Vent   (Replaces: 701349) Special Order $ 260.34

72 700101 Clip Thermo Bulb Appelez-nous -
73 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 14.72

73 701350 Bracket Glide Hanger Appelez-nous -
74 701595 Glide, Rack Appelez-nous -
75 771156 Rack-oven Appelez-nous -
75 700117 Insulation Appelez-nous -
75 771181 Set Screw Appelez-nous -
75 771122 Insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

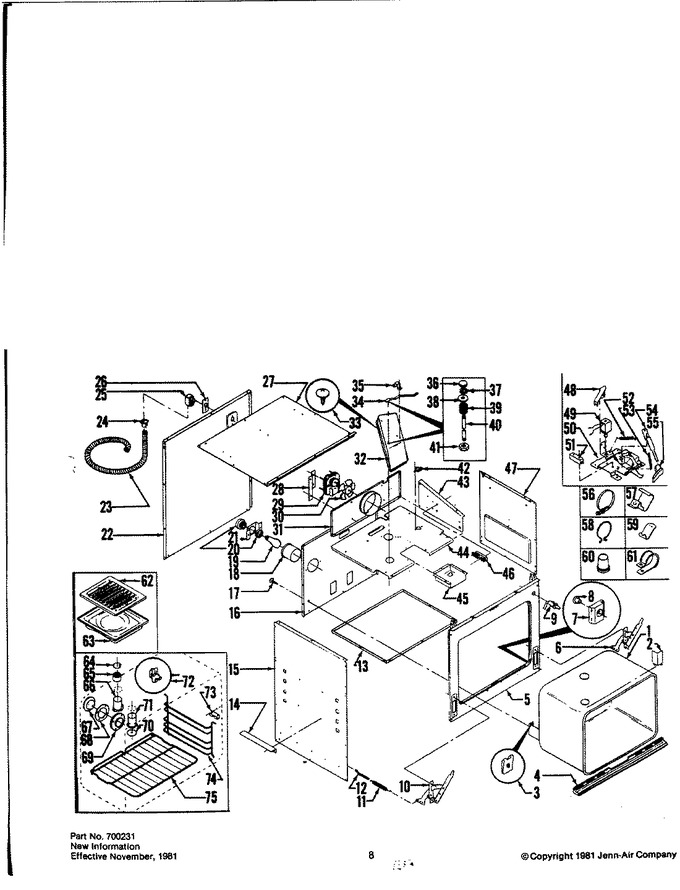

Diagram for W240
