SELECT A DIAGRAM

01 - Body (lower)


02 - Body-upper


03 - Control Panel


04 - Controls


05 - Door (lower)

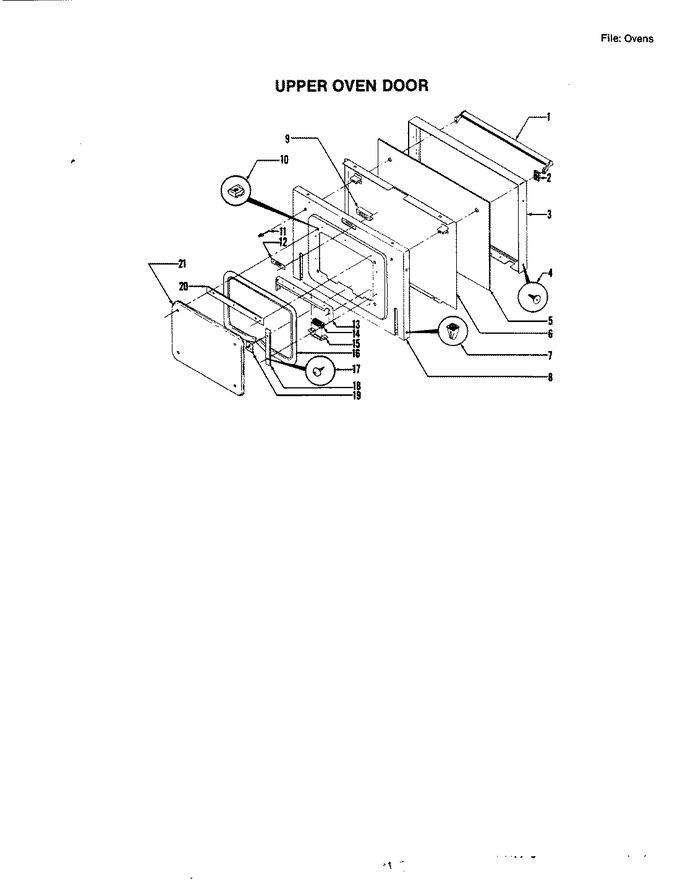

06 - Door (upper)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	771111		Handle		Appelez-nous	-
2	771216		Spacer-handle		Appelez-nous	-
3	771246		Trim-door		Appelez-nous	-
5	771102		Glass		Appelez-nous	-
6	771215		Spacer-glass		Appelez-nous	-
8	701339		Liner, Door		Appelez-nous	-
9	771038		Channel Reinforcement		Appelez-nous	-
12	771151		Plate-striker		Appelez-nous	-
13	771208		Shield-wool		Appelez-nous	-
14	771170		Screen-flame Arrester		Appelez-nous	-
15	771020		Bracket-screen		Appelez-nous	-
16	771200		Seal Door		Appelez-nous	-
18	771001		Angle-seal		Appelez-nous	-
19	771059		Cover-door Seal Ends		Appelez-nous	-
20	771001		Angle-seal		Appelez-nous	-
21	771123		Insulation		Appelez-nous	-
21	701340		Liner, Shield		Appelez-nous	-
21	771124		Insulation		Appelez-nous	-
21	771125		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
