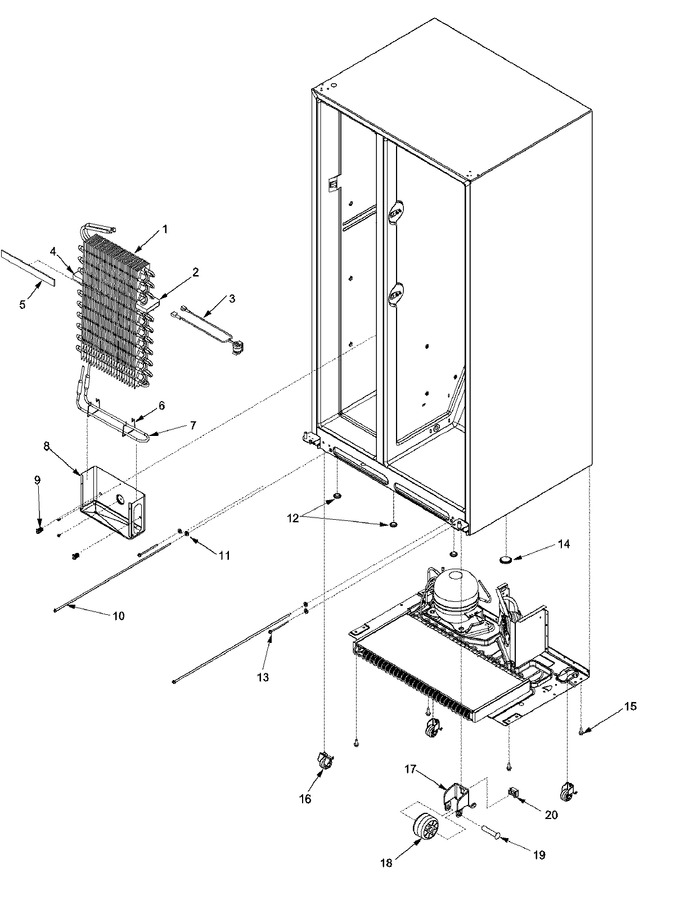

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12676401		Evaporator, Sxs		Appelez-nous	-
2	12590102		Block, Air Coil (rt)		Appelez-nous	-
3	R0131454		Kit, Thermostat				$ 117.47
4	12590101		Block, Air Coil (lt)		Appelez-nous	-
5	67002226		Gasket, Foam		Appelez-nous	-
6	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 141.12
7	12049803		Heater, Evap				$ 66.02
8	12558101WD		Tray, Evap Drip		Appelez-nous	-
8	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.82
9	10623003		Clip, Evaporator		Appelez-nous	-
10	10093315		Screw, Adjusting (rod)		Appelez-nous	-
11	M0274074		Washer, Nylon		Appelez-nous	-
12	A3080001		Plug, Button (blk)		Appelez-nous	-
13	71003131		Bolt, Roller Adj   (Replaces: 12606102)			Immediately	$ 6.74
14	A3076901		Plug-button				$ 5.70
15	67001510		Screw		Appelez-nous	-
16	67002227		Roller Bracket Assy		Appelez-nous	-
17	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
18	WP10450603		Roller   (Replaces: 10450602)				$ 7.88
19	M1205302		Rivet				$ 5.85
20	M0286708		Nut, Speed				$ 45.57
