SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Shelf


08 - Handles And Trim


09 - Hinges


10 - Ice Maker


11 - Light Covers And Toe Grille


12 - Machine Compartment


13 - Ref/fz Door And Shelf


14 - Supplemental Information


15 - Wiring Information

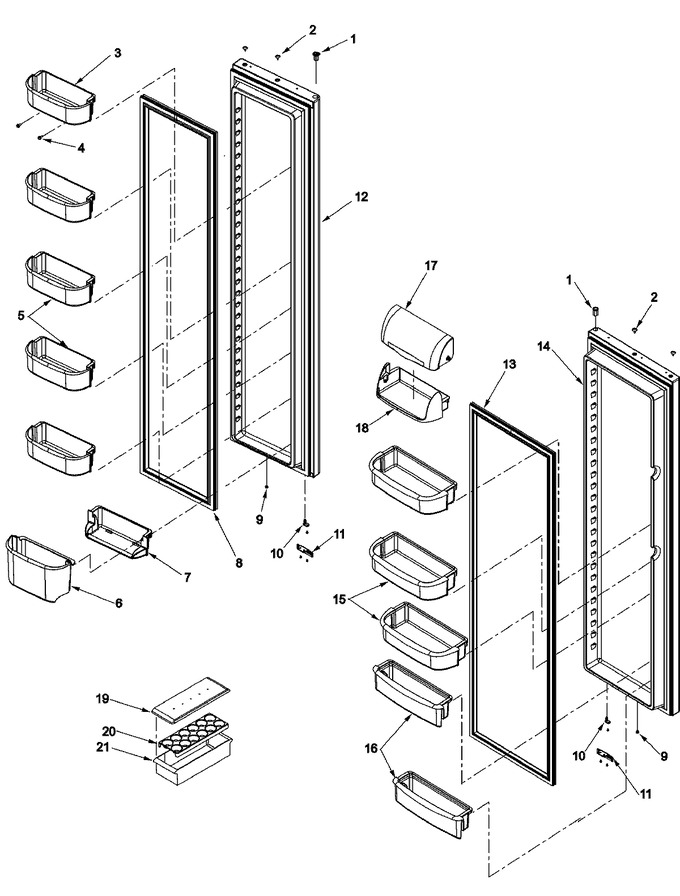

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10961001		Bushing, Door (wht)		Appelez-nous	-
2	M0311605		Plug, Button (wht)		Appelez-nous	-
3	12664901		Bucket-conv Fz Dr		Appelez-nous	-
4	W11233072		Screw, Tc   (Replaces: M0230518)			Immediately	$ 14.02
5	12557501		Bucket, Lwr Fz Dr				$ 17.64
6	12569302		Bucket, Fz Tilt Xxx		Appelez-nous	-
7	12569401		Frame, Tilt Bucket		Appelez-nous	-
8	12591502W		Gasket, Fz Dr (wht)		Appelez-nous	-
9	A3080001		Plug, Button (blk)		Appelez-nous	-
10	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.19
10	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
11	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
11	12636401W		Stop, Door (wht)		Appelez-nous	-
12	67002207		Fz Dr Foam Assy(wht)		Appelez-nous	-
13	12591501W		Gasket, Ref Dr (wht)		Appelez-nous	-
14	67002205		Ref Dr Foam Assy(wht)		Appelez-nous	-
15	12556602		Bucket, Ref Door (gallon)				$ 36.35
16	67002204		Bucket, 22 Ref		Appelez-nous	-
17	67001325		Door, Dairy		Appelez-nous	-
18	67002304		Tray, Dairy		Appelez-nous	-
19	10436404		Lid, Utility				$ 60.85
20	10436506		Tray, Egg				$ 8.28
21	10423131		Bin, Utility				$ 31.13

    View Diagram in Separate Window       Print Part List
