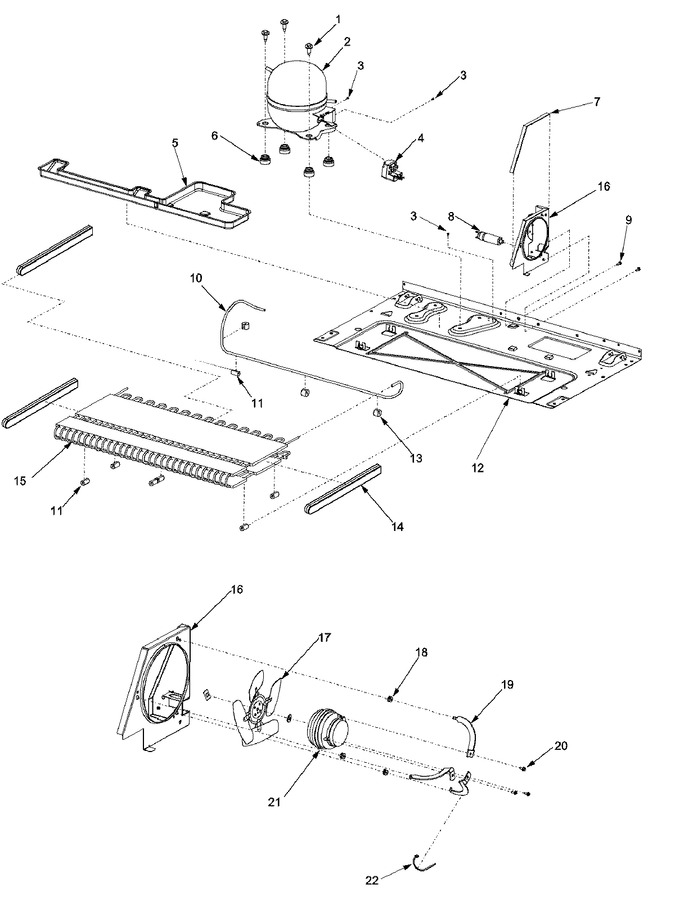

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0221523		Screw, Shldr		Appelez-nous	-
2	W10309997		Compressor, Export   (Replaces: 67002175)				$ 556.12
3	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
4	67002166		Overload/relay		Appelez-nous	-
5	12619101		Pan, Drain		Appelez-nous	-
6	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.19
7	WP854334		Seal   (Replaces: 61003210)				$ 13.28
8	10958304		Capacitor		Appelez-nous	-
9	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
10	67002236		Tube, Discharge		Appelez-nous	-
11	67005680		Grommet, Condenser   (Replaces: 12578601)				$ 21.05
12	67001512		Pan, Base		Appelez-nous	-
13	10699601		Damper, Tubing		Appelez-nous	-
14	67002235		Block-eps Cond		Appelez-nous	-
15	WP67006131		Condenser   (Replaces: 12560503ED)				$ 366.74
16	12687101		Shroud, Condenser		Appelez-nous	-
17	WP12587601		Blade, Cond Fan   (Replaces: 12587601)				$ 126.67
18	12578701		Grommet, Fan Brkt		Appelez-nous	-
19	67001311		Bracket, Cond Mtr		Appelez-nous	-
20	M0223816		Screw, Tr				$ 5.27
21	67002165		Motor, Condenser Fan		Appelez-nous	-
22	M0321210		Tie, Elec		Appelez-nous	-
