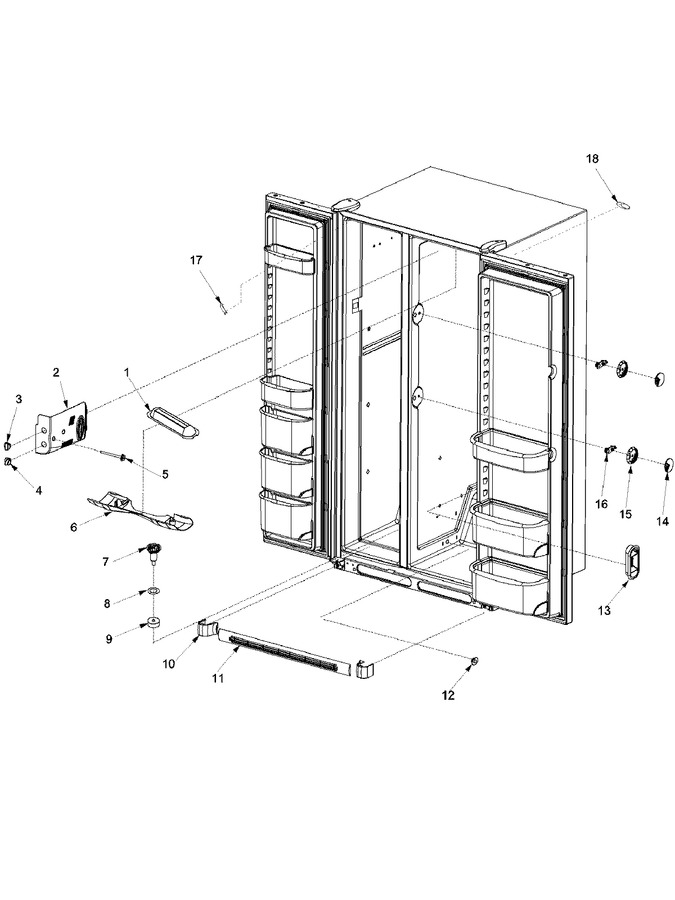

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002221		Housing, Up Ref		Appelez-nous	-
2	67002222		Cover, Export Control		Appelez-nous	-
3	12581102		Knob, Control		Appelez-nous	-
4	12581101		Knob, Control		Appelez-nous	-
5	M0231426		Screw		Appelez-nous	-
6	12602907		Cover, Light		Appelez-nous	-
7	12456901		Funnel, Drain		Appelez-nous	-
8	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
9	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
10	12630301W		Cover, Lwr Hinge (wht)		Appelez-nous	-
11	12627302		Clip, Toe Grille				$ 5.84
11	67002223		Toe Grille Assy (wht)		Appelez-nous	-
12	12567101		Plug, Air Tunnel		Appelez-nous	-
13	12634801		Grille, Return Air		Appelez-nous	-
14	67002180		Grille, Chiller		Appelez-nous	-
15	67002225		Control, Chiller		Appelez-nous	-
16	12572701		Clip, Chiller Control		Appelez-nous	-
17	67003484		Cover, Corner (wht)   (Replaces: 12587702W)				$ 21.42
18	Y12528501		Nameplate (amana Plus)			Immediately	$ 62.74
