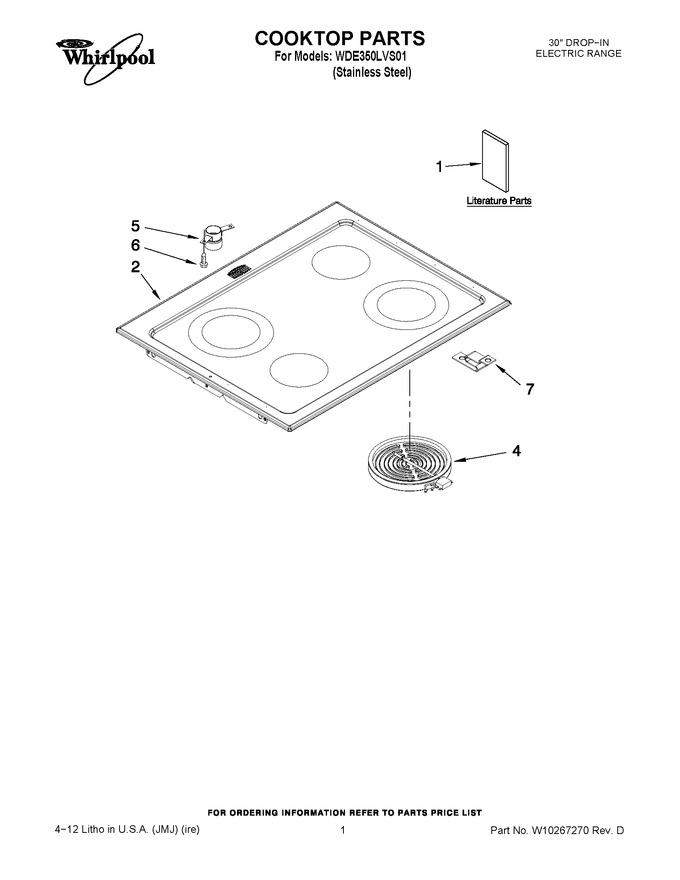

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175572 | Use & Care Guide |
|
- | |||||
| 1 | 8101P336-60 | Installation Instructions |
|
- | |||||
| 2 | W10170212 | Cooktop (stainless) |
|
- | |||||
| 4 | W10823711 | Element (rf,lr) (small) (Replaces: 7406P365-60) |
|
Immediately | $ 239.14 | ||||
| 4 | W10823692 | Element (rf,lr) (large) (Replaces: 7406P403-60) |
|
Immediately | $ 266.27 | ||||
| 5 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 7 | 8004P093-60 | Support,element |
|
$ 10.61 |
