01 - Cooktop Parts


02 - Control Panel Parts

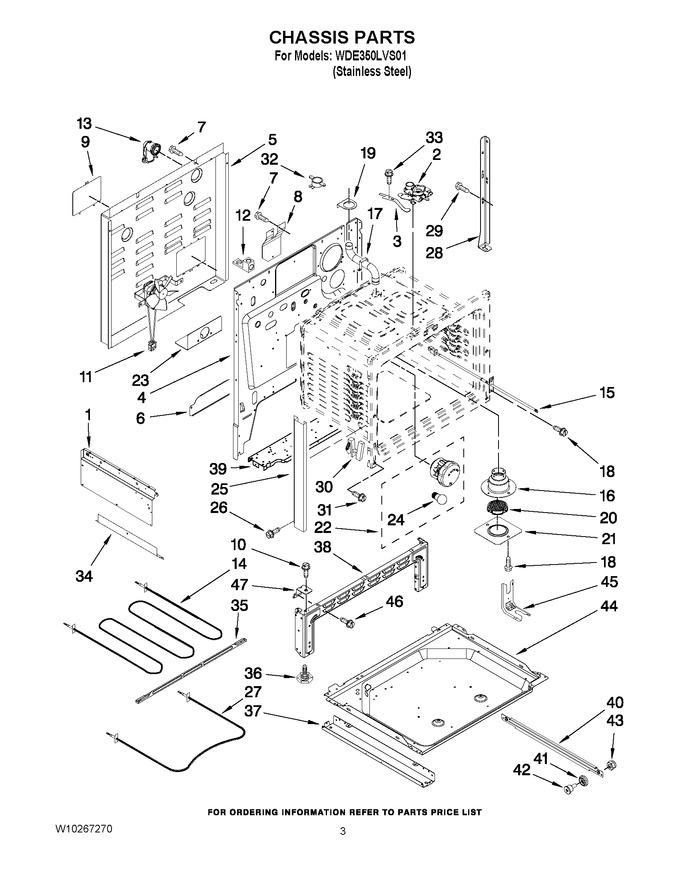

03 - Chassis Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F201-51		Panel, Shield (left)				$ 32.51
1	2618F206-51		Panel, Shield (right)				$ 135.68
2	8002P093-60		Latch Assembly		Appelez-nous	-
3	8009P031-60		Lever, Latch				$ 6.00
4	3804F313-51		Main Back		Appelez-nous	-
5	4005F810-51		Cover, Main Wire				$ 248.98
6	3826F066-51		Extension, Back				$ 7.82
7	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
8	7003P101-60		Insulator, Cord				$ 15.60
9	4005F312-51		Panel, Access		Appelez-nous	-
10	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
11	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 301.08
12	WPW10281322		Block, Bare Wire   (Replaces: 7401P157-60)				$ 7.98
13	7401P033-60		Connector, Cable		Appelez-nous	-
14	WP7406P218-60		Element, Broil   (Replaces: 7406P218-60)			Immediately	$ 159.89
15	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 45.13
16	W10165722		Tube, Vent Lower				$ 66.44
17	8026P085-60		Tube, Vent Upper		Appelez-nous	-
18	7107P434-60		Screw		Appelez-nous	-
19	3605F345-51		Holder, Vent Tube				$ 7.82
20	8034P008-60		Smoke Eliminator				$ 25.43
21	W10165724		Plate, Smoke Elm.		Appelez-nous	-
22	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 66.10
23	W10190166		Brkt., Pwr Supply   (Replaces: 3801F574-51)				$ 8.73
24	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
25	3608F138-70		Trim, Side (2)				$ 66.28
26	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
27	WPW10310274		Element, Bake   (Replaces: 7406P439-60)			Immediately	$ 134.44
28	3807F732-51		Support, Oven		Appelez-nous	-
29	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
30	74011142		Hinge (2)   (Replaces: 7106P141-60)			Immediately	$ 151.18
31	WP4159193		Screw, Hinge   (Replaces: 7101P282-60)				$ 4.56
32	WP7450P034-60		Switch, Hi-limit   (Replaces: 7450P034-60)				$ 205.61
33	74003975		Screw, Lever   (Replaces: 7101P375-60)				$ 12.63
34	3826F064-51		Extension, Shield		Appelez-nous	-
35	3807F494-45		Support, Element		Appelez-nous	-
36	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 6.80
37	4020W035-80		Pedestal, Bottom				$ 106.61
38	4020W036-80		Pedestal, Front		Appelez-nous	-
39	3807F640-51		Support				$ 31.03
40	3406F032-51		Runner, Drawer		Appelez-nous	-
41	WP74004078		Roller, Drawer   (Replaces: 8014P022-60)			Immediately	$ 11.23
42	7118P032-60		Shaft, Roller		Appelez-nous	-
43	3804F231-51		Nut, Lock				$ 147.45
44	3801F231-51		Retainer, Bottom		Appelez-nous	-
45	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.50
46	WP74003976		Screw   (Replaces: 7101P124-60)				$ 6.80
47	3807F727-45		Support				$ 18.96
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
NI	7002P456-60		Insulation, Oven Bottom		Appelez-nous	-
