01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

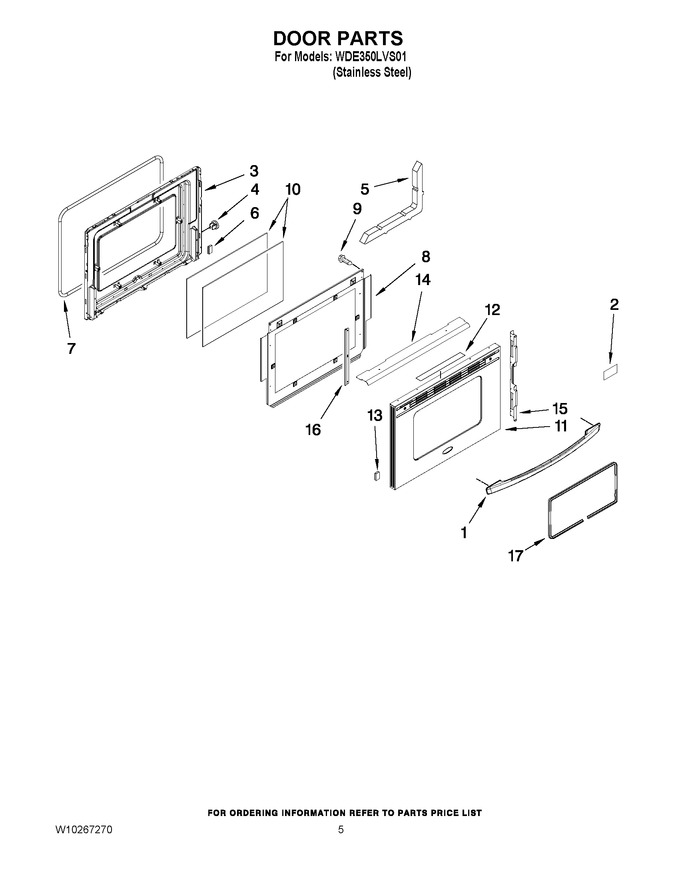

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W1011843361 | Handle, Door |
|
- | |||||
| 2 | 8303810 | Name Plate |
|
- | |||||
| 3 | 2402W312-19 | Liner, Door |
|
$ 144.50 | |||||
| 4 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 10.57 | ||||
| 5 | 7002P247-60 | Insulation, Door |
|
- | |||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.95 | |||||
| 7 | 7201P143-60 | Seal, Door |
|
$ 16.81 | |||||
| 8 | 3601F373-60 | Baffle, Retainer |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 13.25 | ||||
| 10 | 7902P768-60 | Glass, Inner (coated) |
|
- | |||||
| 10 | 74003645 | Glass, Inner Clear (Replaces: 7902P436-60) |
|
Immediately | $ 211.29 | ||||
| 11 | 7760O242-60 | Panel, Oven Dr |
|
- | |||||
| 12 | 74011048 | Insulation, Foil (Replaces: 7002P463-60) |
|
$ 75.32 | |||||
| 13 | 7112P034-60 | Clip, Glass |
|
- | |||||
| 14 | 3604F418-51 | Shield, Door |
|
$ 77.46 | |||||
| 15 | 3804F293-45 | Retainer, Glass |
|
$ 16.56 | |||||
| 16 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 17 | WP74009029 | Gasket, Window (Replaces: 7201P141-60) |
|
Immediately | $ 152.49 |
