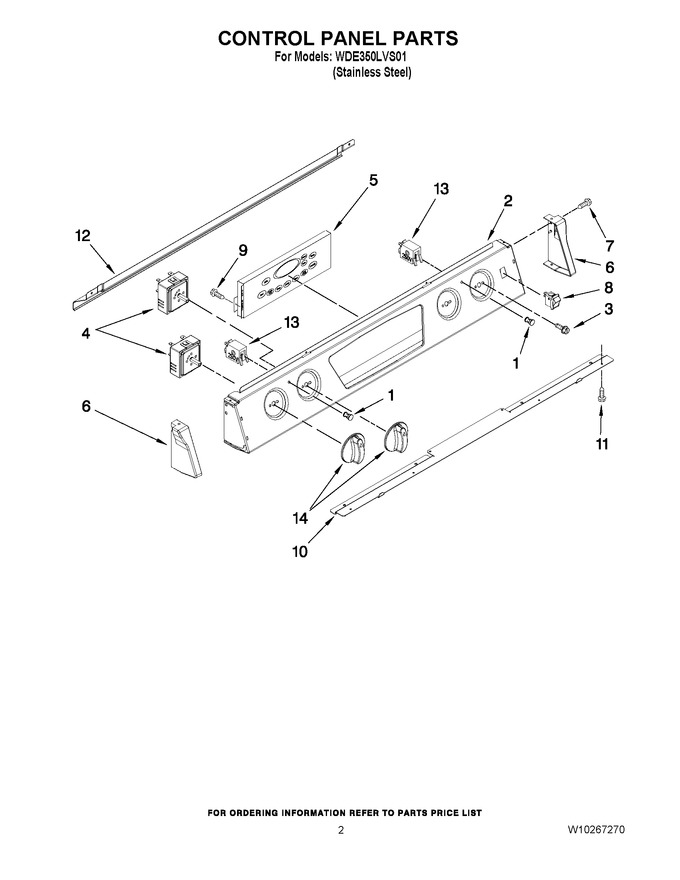

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 13.32 | |||||
| 2 | W10176434 | Panel, Control (black) |
|
- | |||||
| 3 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 4 | WP7403P238-60 | Switch, Infinte (6`` (lf,rr)) (Replaces: 7403P238-60) |
|
Immediately | $ 64.20 | ||||
| 4 | WP7403P239-60 | Switch, Infinte (9`` (rf,lr)) (Replaces: 7403P239-60) |
|
Immediately | $ 39.00 | ||||
| 5 | W10769823 | Control W/ Overlay (Replaces: W10197045) |
|
Immediately | $ 295.45 | ||||
| 6 | 7726P401-60 | Endcap (l.hand) |
|
$ 23.44 | |||||
| 6 | 7726P400-60 | Endcap (r.hand) |
|
$ 32.99 | |||||
| 7 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 8 | 7403P798-60 | Switch, Rocker |
|
- | |||||
| 9 | WP59002061 | Screw, Control (Replaces: 7101P077-60) |
|
$ 8.18 | |||||
| 10 | 3807F601-51 | Support, Control Panel |
|
- | |||||
| 11 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 12 | 3604W156-70 | Shield, Vent |
|
- | |||||
| 13 | 7407P082-60 | Light, Indicator |
|
- | |||||
| 14 | 7737P082-60 | Knob (4) |
|
- |
