Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8182210 Clamp, Bellow To Tub   (Replaces: 8182210) In-Stock Immediately $ 36.79

2 WP8182119 Bellow   (Replaces: W10003800) In-Stock Immediately $ 187.27

3 WPW10253483 Lock, Door   (Replaces: 8540772) In-Stock Immediately $ 222.33

4 W10902779 Clamp, Bellow To Front Panel   (Replaces: W10003490) In-Stock Immediately $ 32.94

5 WP8540725 Screw   (Replaces: 8540725) Special Order $ 8.52

6 WPW10488048 Hook, Door   (Replaces: W10003390) In-Stock Immediately $ 8.28

7 W11230114 Screw   (Replaces: 8540513) Special Order $ 13.94

8 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

9 WP8181660 Screw   (Replaces: 8540284) Special Order $ 7.30

10 WPW10003370 Frame, Door Back Support   (Replaces: W10003370) Special Order $ 231.38

11 W10003430 Clamp, Support Appelez-nous -
12 W10003520 Glass, Door Appelez-nous -
13 WP8183202 Hinge, Door   (Replaces: W10005090) In-Stock Immediately $ 169.21

14 WP489442 Screw   (Replaces: W10015090) In-Stock Immediately $ 11.49

15 W10295703 Clamp, Glass (2)   (Replaces: W10003440) Special Order $ 19.85

16 WP8183256 Frame, Door Front Support   (Replaces: W10005220) Special Order $ 306.86

17 W10008990 Screen, Door Appelez-nous -
18 W10069120 Trim Ring, Outer Door Special Order $ 119.09


    View Diagram in Separate Window     Print Icon   Print Part List

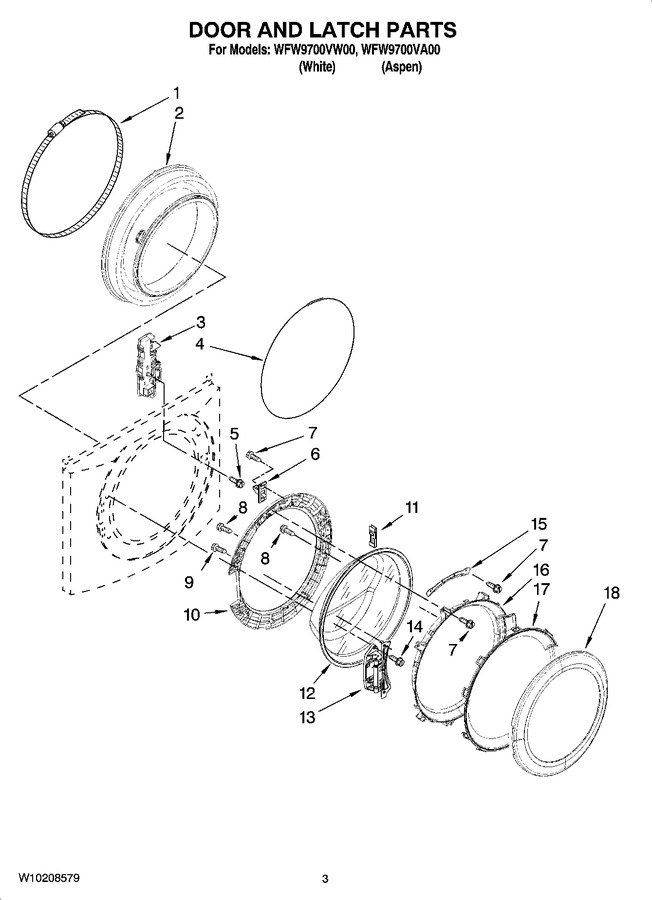

Diagram for WFW9700VA00
