01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts
02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Tub And Basket Parts
05 - Tub And Basket Parts

Diagram for 06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)
06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10157801 Panel, Control (aspen) Special Order $ 353.86

1 W10157776 Panel, Control (white) Appelez-nous -
2 W10131369 Knob, Control (includes Item 9) (white) Special Order $ 24.15

2 W10166961 Knob, Control (includes Item 9) (aspen) Special Order $ 92.28

3 W10133927 Wheel, Detent Kit (includes Item 9) Special Order $ 145.30

4 W10131661 Wheel, Rast (2) (service In Kit Only) Appelez-nous -
5 W10131377 Spring, Knob (2) (service In Kit Only) Appelez-nous -
6 W10131378 Wheel, Detent (service In Kit Only) Appelez-nous -
7 W10131376 Ring, Knob Light (includes Item 9) Appelez-nous -
8 W10131381 Wheel, Encoder Special Order $ 84.58

9 W10131382 Retainer, Snap Appelez-nous -
10 W10164402 User Interface, Center Special Order $ 271.19

11 8183177 Adapter, Encoder Wheel Appelez-nous -
12 W10157890 User Interface, Right Appelez-nous -
13 W10157884 Harness, Wiring (user Interface) Special Order $ 147.59

14 W10175772 Microcomputer, Machine Control Appelez-nous -
15 W10059240 Brace, Front Top Special Order $ 204.59

16 W10003700 Channel, Water Appelez-nous -
17 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49

18 W10167278 Harness, Wiring (upper Main) Special Order $ 358.14


    View Diagram in Separate Window     Print Icon   Print Part List

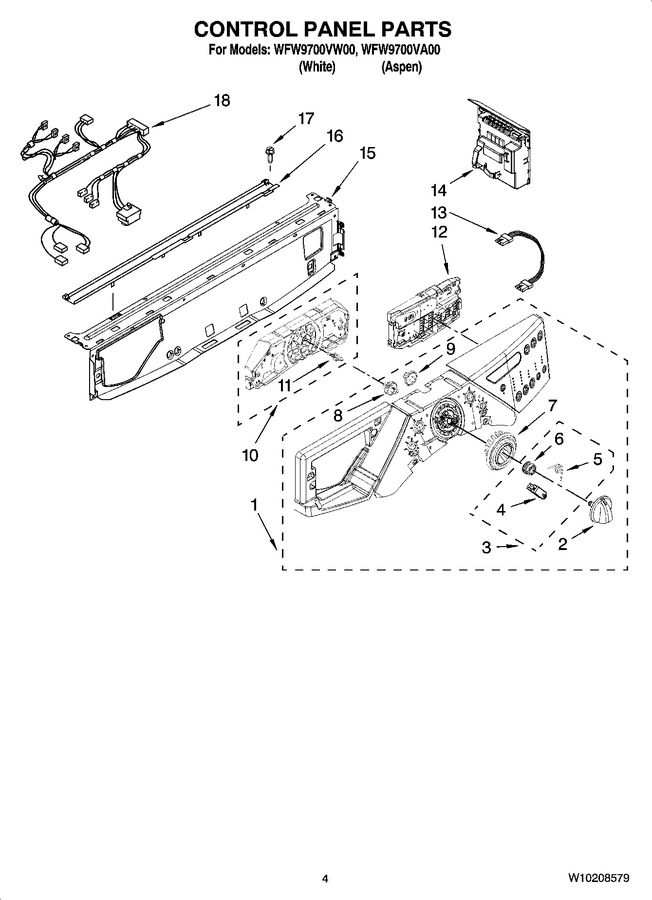

Diagram for WFW9700VA00
