01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)

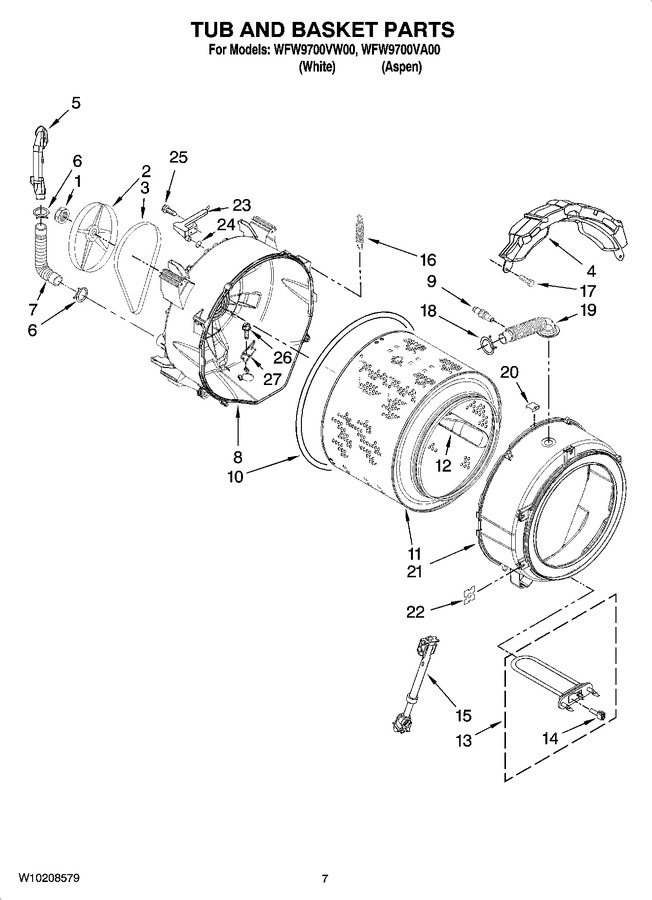

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8533999)			Immediately	$ 83.07
2	WP8182650		Pulley   (Replaces: W10003730)			Immediately	$ 197.07
3	WPW10388414		Belt, Drive   (Replaces: W10116915)			Immediately	$ 53.86
4	W10163424		Counterweight, Front (2)				$ 74.63
5	W10112169		Pipe, Ventilation				$ 187.87
6	8540010		Clamp, Vent Hose				$ 11.74
7	WP8181743		Hose, Exhaust   (Replaces: W10004330)				$ 113.79
8	W10234653		Tub, Rear (includes Items 10, 22, 26 & 27)		Appelez-nous	-
9	W10156249		Connector, Overflow Hose				$ 36.00
10	WPW10036350		Gasket, Tub   (Replaces: W10036350)				$ 92.02
11	WPW10159904		Basket, Complete   (Replaces: W10159904)				$ 993.15
12	WPW10110114		Baffle, Tub   (Replaces: W10110114)				$ 113.42
13	WPW10426377		Element, Heating   (Replaces: W10155115)				$ 319.00
14	WPW10467289		Negative Thermistor Control   (Replaces: 8540226)			Immediately	$ 47.80
15	W10822553		Shock Absorber   (Replaces: W10015830)			Immediately	$ 83.35
16	W10243909		Spring, Suspension (set Of 2)   (Replaces: W10207549)				$ 131.67
17	W11685857		Bolt, Counterweight Mtg.   (Replaces: W10094780)				$ 14.81
18	3363365		Clamp, Hose				$ 11.29
19	W10156130		Hose, Exhaust				$ 46.31
20	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.97
21	W10004180		Tub, Front (includes Items 10 & 22)		Appelez-nous	-
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 7.30
23	W10003600		Air Trap		Appelez-nous	-
24	WPW10250553		O-ring, Air Trap   (Replaces: W10004270)				$ 7.55
25	W11230114		Screw   (Replaces: 8540513)				$ 13.94
26	W11230114		Screw   (Replaces: 8540880)				$ 13.94
27	W10250558		Bracket, Heating Element   (Replaces: W10015240)				$ 13.03

    View Diagram in Separate Window       Print Part List
