Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

2 WPW10156253 Valve, Water Inlet   (Replaces: W10156253) In-Stock Immediately $ 233.24

3 WP596669 Clamp, Hose   (Replaces: 370450) In-Stock Immediately $ 8.82

4 WPW10110225 Flowmeter   (Replaces: W10110225) In-Stock Immediately $ 109.03

5 WP8183181 Nozzle, Inlet   (Replaces: 8540042) Special Order $ 94.82

6 WP8183183 Lever, Connection   (Replaces: W10003830) Special Order $ 94.74

7 WP8183184 Cam, Actuator   (Replaces: W10003190) Special Order $ 94.74

8 WPW10161052 Lever, Water Distribution   (Replaces: W10161052) In-Stock Immediately $ 7.55

9 WPW10352973 Actuator   (Replaces: W10163975) In-Stock Immediately $ 134.69

10 W10157759 Dispenser, Complete (includes Item 8) Special Order $ 127.50

11 W10005080 Plate, Distribution Appelez-nous -
12 WP8181712 Nozzle, Distribution   (Replaces: W10003110) Special Order $ 93.57

13 W10003170 Hook, Drawer Appelez-nous -
14 WPW10121596 Separator, With Selection Slider   (Replaces: W10121596) Special Order $ 76.72

15 W10157775 Syphon, Bleach/softener Special Order $ 55.65

16 W10003140 Cover, Detergent Drawer Special Order $ 89.91

17 W10157760 Drawer, Detergent (complete) Special Order $ 51.72

18 WPW10156617 Bracket, Handle Fixation   (Replaces: W10156617) Special Order $ 108.32

19 W10156621 Handle, Drawer (includes Items 18 & 20) (aspen) Appelez-nous -
19 W10156618 Handle, Drawer (includes Items 18 & 20) (white) Appelez-nous -
20 8183253 Medallion Special Order $ 27.06

21 WP8181747 Seal   (Replaces: W10003360) In-Stock Immediately $ 27.33

22 WPW10005300 Tube, Dispenser To Bellow   (Replaces: W10005300) In-Stock Immediately $ 22.25

23 8183180 Hose, Inlet Nozzle Appelez-nous -
24 8183182 Hose, Flowmeter (l-shaped) Special Order $ 41.42

25 W10156131 Hose, Inlet Valve To Steamer Siphon Appelez-nous -
26 WP489503 Clamp, Hose   (Replaces: 8181754) In-Stock Immediately $ 11.29


    View Diagram in Separate Window     Print Icon   Print Part List

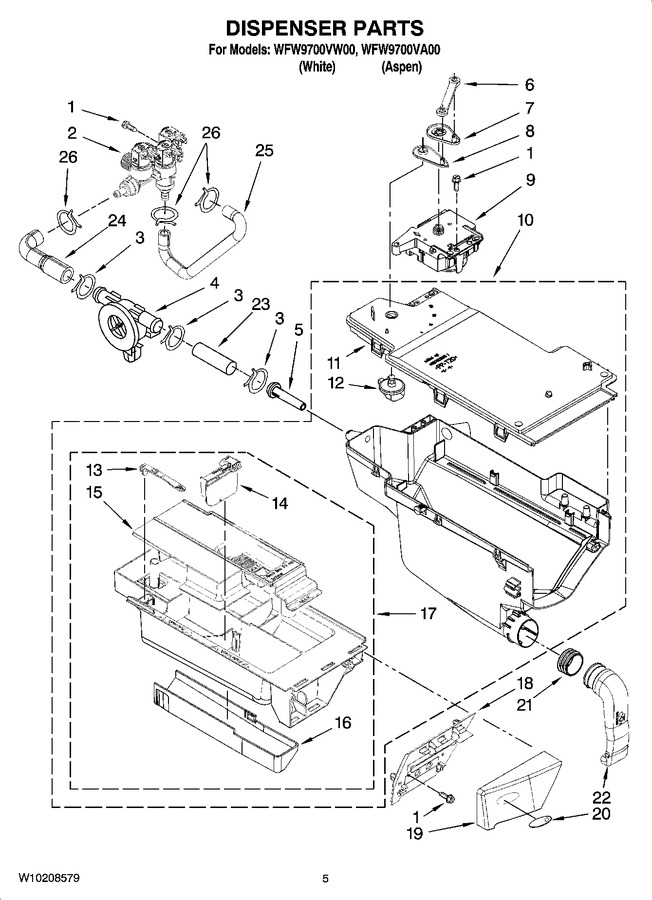

Diagram for WFW9700VA00
