SELECT A DIAGRAM

01 - Control Panel


02 - Door And Toe Panel

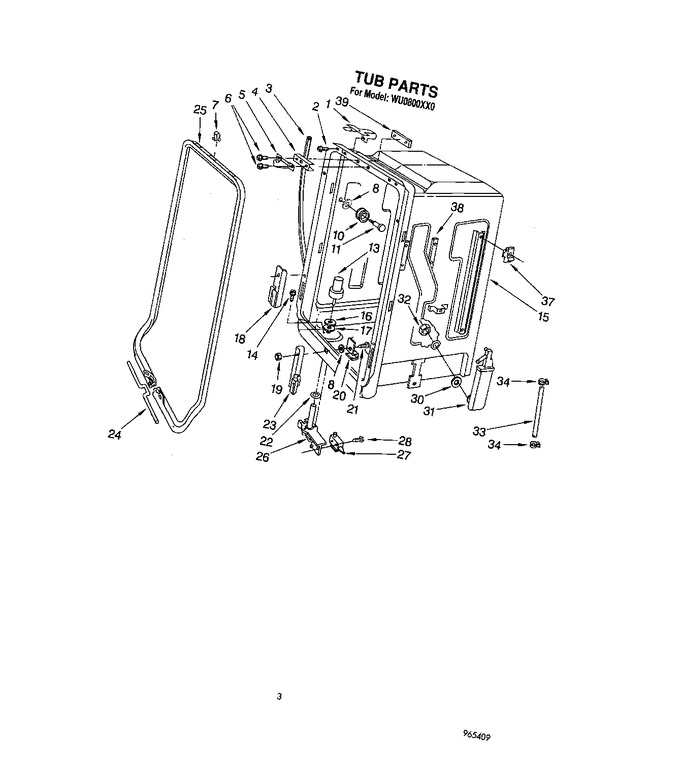

03 - Tub


04 - Frame, Lit/optional


05 - Pump And Sprayarm


06 - Detergent Cup


07 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343143		Clip, Attach (2)		Appelez-nous	-
2	WP355214		Screw, 8 X 5/16   (Replaces: 965157)			Immediately	$ 8.80
3	965406		Drain Hose		Appelez-nous	-
4	4340875		Shim		Appelez-nous	-
5	965213		Strike		Appelez-nous	-
6	965214		Screw, 10-24 X 3/4		Appelez-nous	-
7	965215		Gasket Clip Kit (includes Item 20)		Appelez-nous	-
8	965315		Sealing Washer		Appelez-nous	-
10	965417		Roller		Appelez-nous	-
11	4340681		Shoulder Screw (includes Item 8)		Appelez-nous	-
13	965375		Float		Appelez-nous	-
14	965222		Screw, 10 X 1		Appelez-nous	-
15	965434		Tub & Gasket Assembly (includes Item 25)		Appelez-nous	-
16	965224		Float Tube Plate		Appelez-nous	-
17	965225		Float Tube Gasket		Appelez-nous	-
18	965226		Arm Guide, L.h.		Appelez-nous	-
19	WP486255		Nut, 8-32   (Replaces: 965227)				$ 6.47
20	965228		Gasket Clip		Appelez-nous	-
21	965229		Screw, 8-32 X 1/2		Appelez-nous	-
22	965230		``o`` Ring		Appelez-nous	-
23	965231		Arm Guide, R.h.		Appelez-nous	-
24	965407		Junction Rod		Appelez-nous	-
25	965381		Gasket, Tub (includes Items 7 & 24)		Appelez-nous	-
26	965419		Float Assembly (includes Items 16, 17, 22, 27 & 28)		Appelez-nous	-
27	965376		Switch		Appelez-nous	-
28	965377		Screw, 4-24 X 5/8		Appelez-nous	-
30	965342		Gasket, Inlet		Appelez-nous	-
31	4340246		Water Inlet		Appelez-nous	-
32	965341		Nut		Appelez-nous	-
33	965241		Tubing, Inlet (includes Item 34)		Appelez-nous	-
34	965318		Clamp (2)		Appelez-nous	-
37	965245		Cage Nut		Appelez-nous	-
38	965246		Tapping Plate (4)		Appelez-nous	-
39	965313		Latch Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
