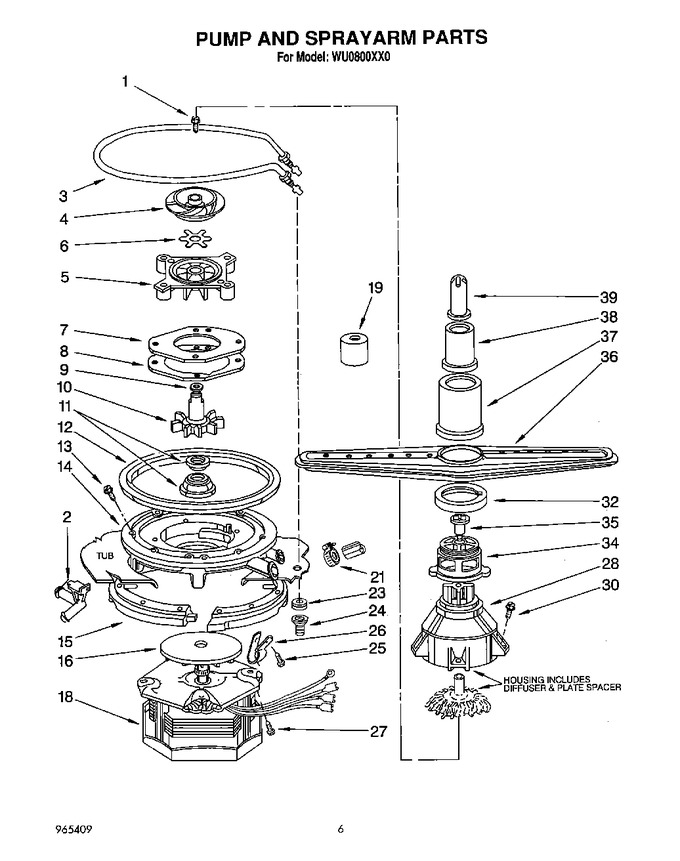

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4340235		Screw, No.10-32 X 2 1/4		Appelez-nous	-
2	965418		Valve, Check		Appelez-nous	-
3	4340304		Heater		Appelez-nous	-
4	965384		Upper Impeller		Appelez-nous	-
5	965385		Spacer Plate		Appelez-nous	-
6	965390		Macerator		Appelez-nous	-
7	4340510		Pump Plate		Appelez-nous	-
8	4340487		Pump Gasket		Appelez-nous	-
9	4340254		O-ring		Appelez-nous	-
10	965396		Pump Seal Kit		Appelez-nous	-
11	4340106		Water Seal		Appelez-nous	-
12	4340818		Gasket		Appelez-nous	-
13	4340398		Screw, 10 X 1		Appelez-nous	-
14	965386		Housing, Pump		Appelez-nous	-
15	965287		Clamp Ring (2)		Appelez-nous	-
16	4340897		Watershield Assembly		Appelez-nous	-
18	965397		Motor Assembly		Appelez-nous	-
19	4340107		Seal Installation Tool		Appelez-nous	-
21	4340499		Hose Clamp		Appelez-nous	-
23	5300806833		Heater Grommet   (Replaces: 965283)				$ 5.34
24	965282		Heater Nut, 1/2		Appelez-nous	-
25	W11693756		Screw, 8 X 5/8   (Replaces: 4340399)			Immediately	$ 14.76
26	4340643		Clamp		Appelez-nous	-
27	4340828		Screw, 10 X 1		Appelez-nous	-
28	965387		Impeller Housing		Appelez-nous	-
30	4340412		Screw, 10 - 2		Appelez-nous	-
32	965324		Shield, Bearing		Appelez-nous	-
34	965420		Bearing		Appelez-nous	-
35	965323		Sprayarm Bolt		Appelez-nous	-
36	965278		Sprayarm Assembly		Appelez-nous	-
37	965277		Tower Base		Appelez-nous	-
38	965276		Tower Section		Appelez-nous	-
39	965275		Tower Tip		Appelez-nous	-
