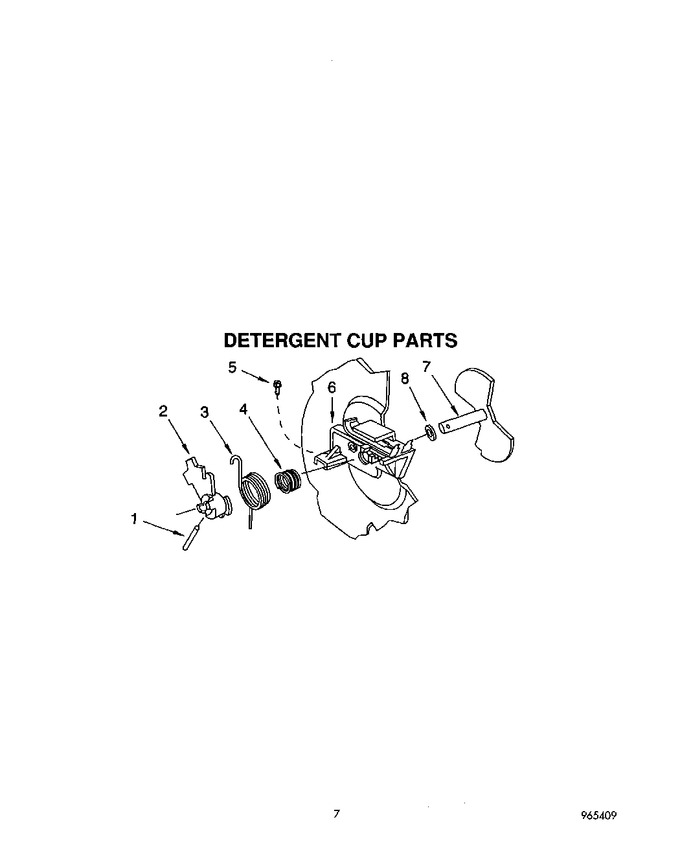

06 - Detergent Cup
07 - Dishrack
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 965312 | Spiral Pin |
|
- | |||||
| 2 | 965199 | Cam |
|
- | |||||
| 3 | 965201 | Spring, Cam |
|
- | |||||
| 4 | 965202 | Spring, Cam Compression |
|
- | |||||
| 5 | 4340832 | Screw, 8 X 5/8 |
|
- | |||||
| 6 | 965430 | Bi-metal Assembly |
|
- | |||||
| 7 | 4340831 | Dispenser Lid |
|
- | |||||
| 8 | 965207 | ``o`` Ring |
|
- |
