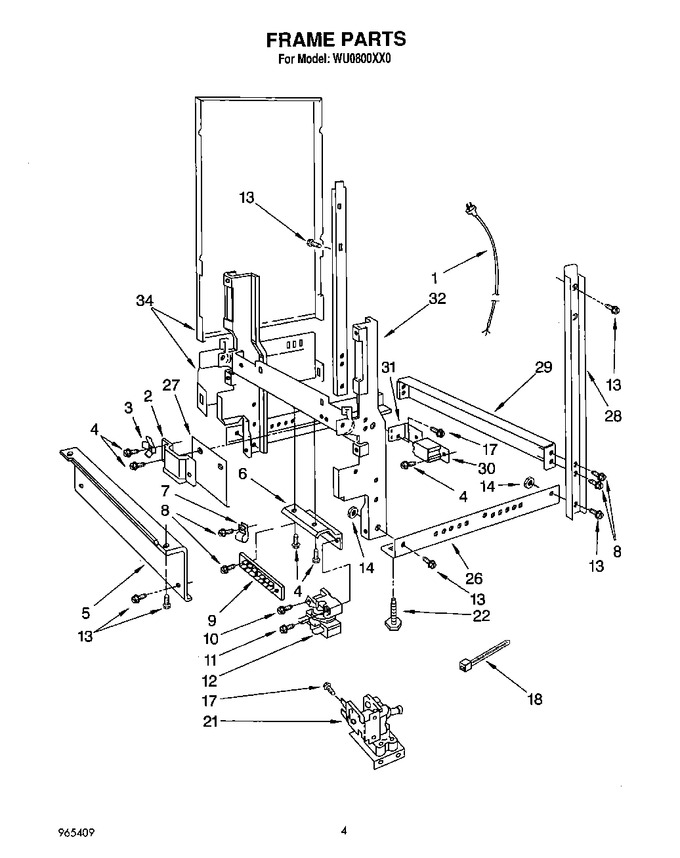

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965337		Power Cord (optional)		Appelez-nous	-
2	965248		Clamp, Wiring		Appelez-nous	-
3	965300		Terminal, Grounding		Appelez-nous	-
4	965301		Screw, 8 X 3/8		Appelez-nous	-
5	965249		Toeplate		Appelez-nous	-
6	965334		Terminal Bracket		Appelez-nous	-
7	965161		Clamp, Wire		Appelez-nous	-
8	WP488729		Screw, 8 X 1/2   (Replaces: 965188)			Immediately	$ 8.28
9	965439		Terminal Block		Appelez-nous	-
10	WP486579		Screw, 8-32 X 1/4   (Replaces: 965435)				$ 7.89
11	965436		Screw, 8-32 X 1-1/4		Appelez-nous	-
12	965254		Motor Relay		Appelez-nous	-
13	4340307		Screw, 1/4-20 X 1/2		Appelez-nous	-
14	4342593		Nut, 10-24 (4)		Appelez-nous	-
17	4340341		Screw, 10 X 1/2		Appelez-nous	-
18	4342590		Wire Tie		Appelez-nous	-
21	965335		Valve, Inlet		Appelez-nous	-
22	965355		Levelers (4)		Appelez-nous	-
26	4342620		Angle, Base (2)		Appelez-nous	-
27	4340862		Shield, Wire		Appelez-nous	-
28	965269		Channel, Side (2)		Appelez-nous	-
29	965437		Brace, Rear		Appelez-nous	-
30	965414		Cover, Junction Box		Appelez-nous	-
31	965272		Bracket, Junction Box		Appelez-nous	-
32	965336		Hinge Weld Assembly		Appelez-nous	-
34	965307		Side Panel Kit (almond)		Appelez-nous	-
34	965303		Side Panel Kit (white)		Appelez-nous	-
34	965304		Side Panel Kit (coffee)		Appelez-nous	-
34	965306		Side Panel Kit (wheat)		Appelez-nous	-
34	965305		Side Panel Kit (avocado)		Appelez-nous	-
	LIT965410		Guide, Use & Care		Appelez-nous	-
	LIT965422		Instructions, Installation		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	350942		Primer (white)   (Replaces: 206922)				$ 94.14
	285006		Paint, Spray 13 Oz. (black)				$ 59.89
	LIT965409		Parts List		Appelez-nous	-
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 48.32
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 45.86
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 38.83
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
