Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 965333 Screw, 8 X 7/16 Appelez-nous -
2 965144 End Cap, L.h. Appelez-nous -
3 WP4314961 Rocker Switch   (Replaces: 965402) Special Order $ 93.95

4 965146 Vent Grille Appelez-nous -
5 965147 Clip Appelez-nous -
6 4342579 Timer Knob Appelez-nous -
8 965150 End Cap, R.h. Appelez-nous -
9 4340654 Terminal Board Appelez-nous -
14 965444 Timer Appelez-nous -
15 WP355214 Screw   (Replaces: 965157) In-Stock Immediately $ 8.80

16 965158 Splash Pan Appelez-nous -
17 965159 Shield, Vent Slot Appelez-nous -
18 965160 Clamp, Wire Appelez-nous -
19 965161 Clamp, Wire Appelez-nous -
20 965403 Console Panel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

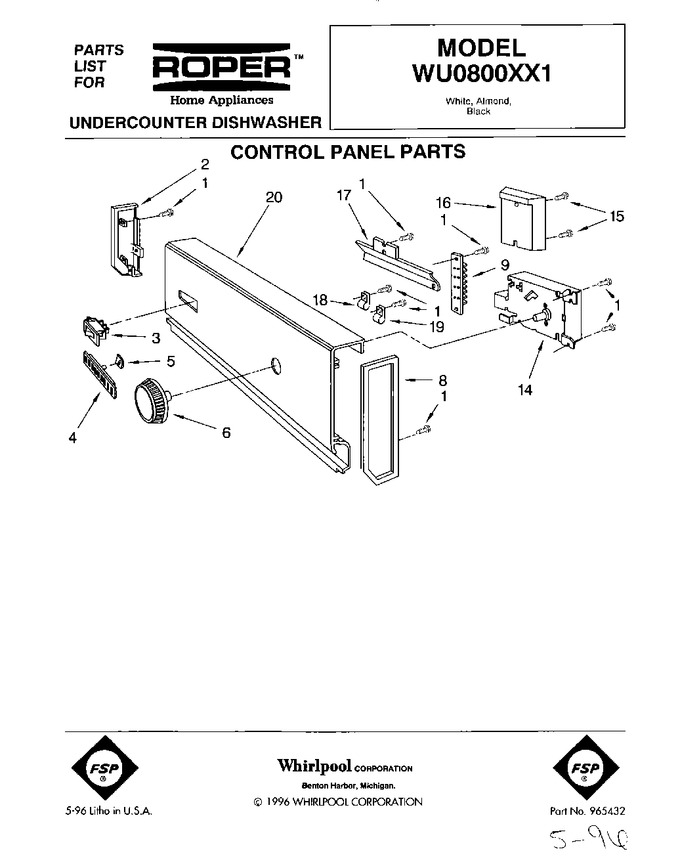

Diagram for WU0800XX1
