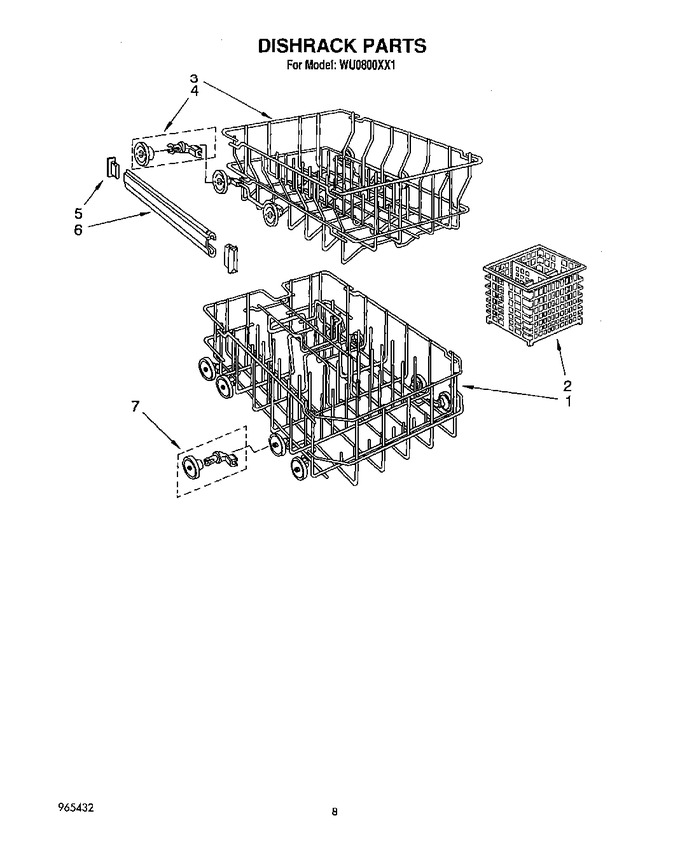

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 965440 | Lower Rack Assembly (includes Item 7) |
|
- | |||||
| 2 | 965290 | Silverware Basket |
|
- | |||||
| 3 | 965415 | Upper Rack Assembly (includes Item 4) |
|
- | |||||
| 4 | 965416 | Wheel Assembly, Upper Rack (4) |
|
- | |||||
| 5 | 965399 | End Cap, Slide (4) |
|
- | |||||
| 6 | 965393 | Slide, Rack (2) |
|
- | |||||
| 7 | 965365 | Wheel Assembly, Lower Rack (4) |
|
- |
