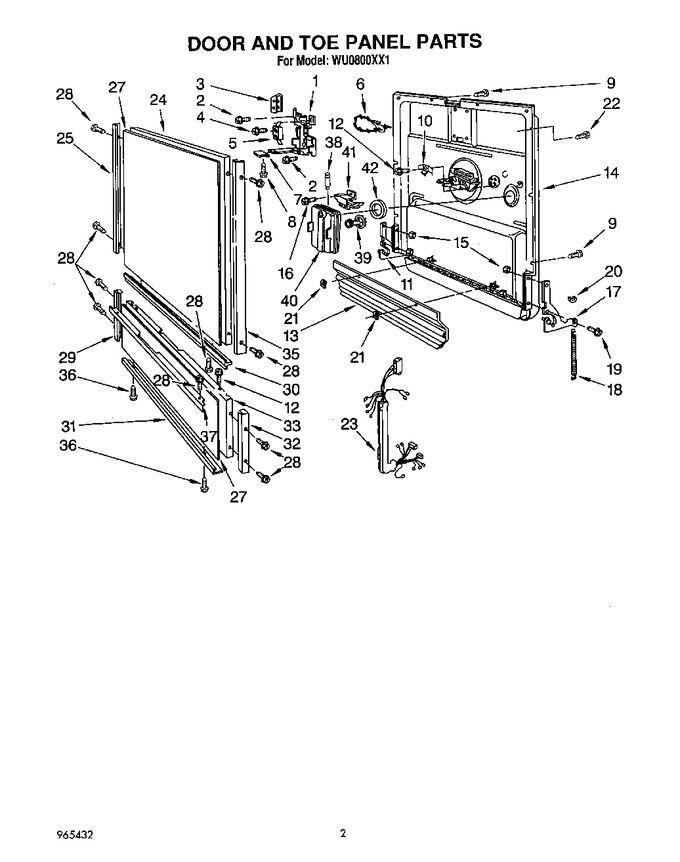

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965404		Latch Assembly		Appelez-nous	-
2	4340832		Screw, 8 X 5/8		Appelez-nous	-
3	965165		Switch Cover		Appelez-nous	-
4	965166		Screw, 6-32 X 1		Appelez-nous	-
5	965167		Switch		Appelez-nous	-
6	WPW10339879		Wire Tie   (Replaces: 4340846)				$ 8.30
7	965169		Latch Knob		Appelez-nous	-
8	965194		Screw, 8-32 X 5/16		Appelez-nous	-
9	4340841		Screw, 8 X 7/16		Appelez-nous	-
10	965171		Terminal, Grounding		Appelez-nous	-
11	965172		Counterbalance Arm, L.h.		Appelez-nous	-
12	4340701		Screw, 8 X 3/8		Appelez-nous	-
13	965358		Baffle Seal		Appelez-nous	-
14	965431		Door, Inner		Appelez-nous	-
15	W10080180		Nut, 10-24 (4)   (Replaces: 965176)				$ 14.15
16	965301		Screw, 8a X 3		Appelez-nous	-
17	965178		Counterbalance Arm, R.h.		Appelez-nous	-
18	4340462		Door Spring (2)		Appelez-nous	-
19	965180		Screw, 10-24 X 5/8		Appelez-nous	-
20	965181		Spring Pad (2)		Appelez-nous	-
21	965405		Clip		Appelez-nous	-
22	W11693756		Screw, 8 X 5/8   (Replaces: 965183)			Immediately	$ 14.76
23	965441		Harness, Wiring		Appelez-nous	-
24	965184		Door Panel (white)		Appelez-nous	-
25	965426		Trim, Door Side L.h.		Appelez-nous	-
27	4340800		Door Panel Insert (almond & Black)		Appelez-nous	-
28	965412		Screw, 8 X 1/2		Appelez-nous	-
29	965424		Trim, Access Panel L.h.		Appelez-nous	-
30	965359		Door Trim, Bottom		Appelez-nous	-
31	965413		Access Trim, Bottom		Appelez-nous	-
32	965423		Trim, Access Panel R.h.		Appelez-nous	-
33	4340601		Access Panel (white)		Appelez-nous	-
35	965425		Trim, Door Side R.h.		Appelez-nous	-
36	965301		Screw, 8 X 3/8		Appelez-nous	-
37	965339		Trim, Access Panel Top		Appelez-nous	-
38	965428		Plunger		Appelez-nous	-
39	965429		Plug, Fill		Appelez-nous	-
40	4340284		Body Assembly		Appelez-nous	-
41	965427		Bi-metal Assembly		Appelez-nous	-
42	4340168		Grommet, Dispenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
