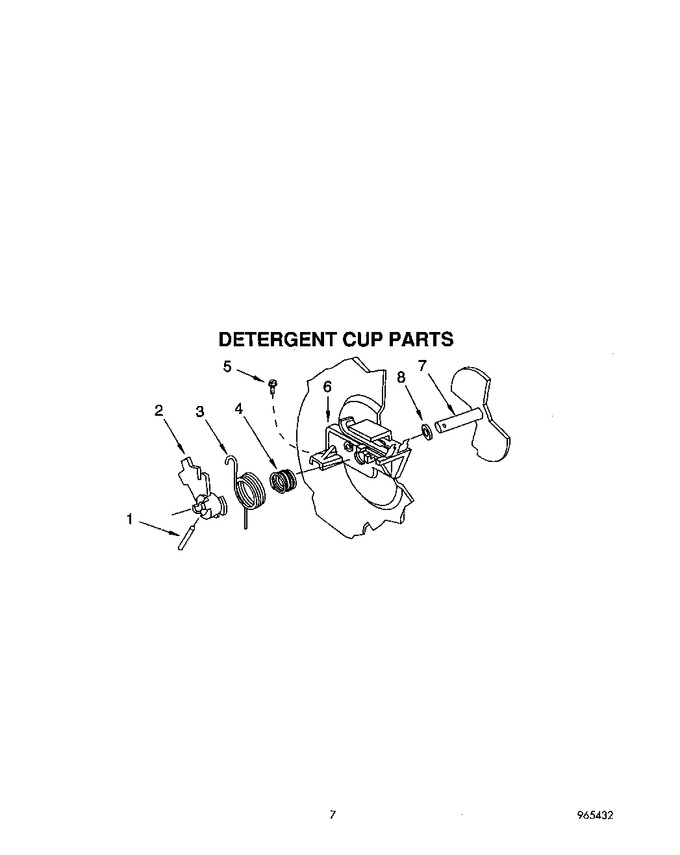

06 - Detergent Cup


07 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965448		Spiral Pin (includes Illus. 2, 7, 8)		Appelez-nous	-
2	965447		Cam (includes Illus. 1, 7, 8)		Appelez-nous	-
3	965201		Spring, Cam		Appelez-nous	-
4	965202		Spring, Cam Compression		Appelez-nous	-
5	4340832		Screw, 8 X 5/8		Appelez-nous	-
6	965430		Bi-metal Assembly		Appelez-nous	-
7	965449		Lid, Dispenser (includes Illus. 1, 2, 8)		Appelez-nous	-
8	965207		``o`` Ring (includes Illus. 1, 2, 7)		Appelez-nous	-
