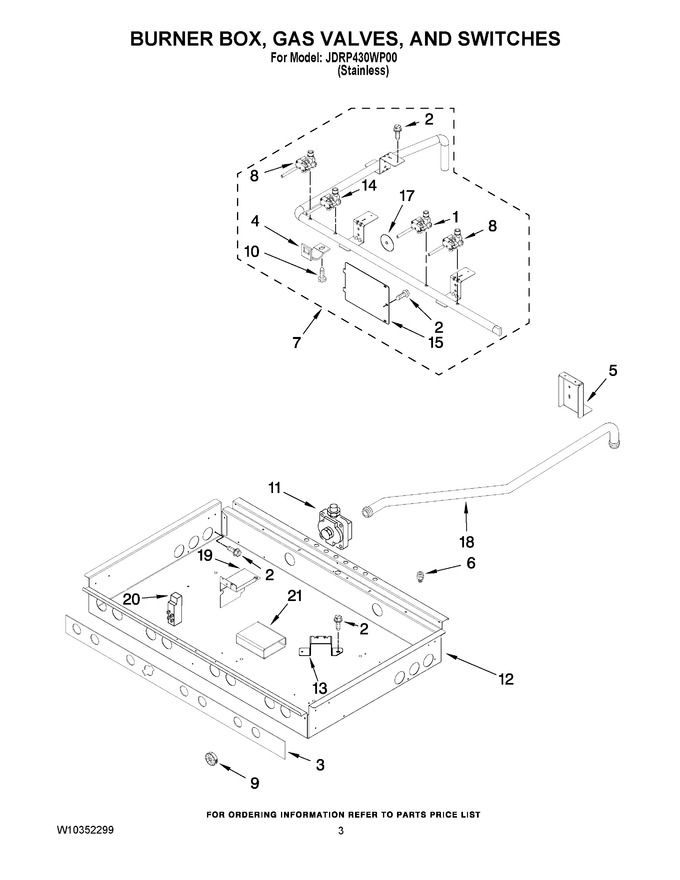

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10371235		Valve, Dual (lf)   (Replaces: W10305287)			Immediately	$ 268.41
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W11706804		Insulation, Burner Box   (Replaces: W10276534)		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10115850		Bracket, Pressure Regulator		Appelez-nous	-
6	4453115		Adapter, 1/2`` Female				$ 126.70
7	W10145506		Manifold		Appelez-nous	-
8	W10326645		Valve, Single (lr & Rf)				$ 162.52
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W10293267		Regulator, Pressure				$ 313.91
12	W10276535		Burner Box		Appelez-nous	-
13	W10280796		Bracket, Burner (rr)		Appelez-nous	-
13	W10115929		Bracket, Burner (lf, Lr & Rf)		Appelez-nous	-
14	WPW10385583		Valve, Aux (rr)   (Replaces: W10305286)			Immediately	$ 332.10
15	W10115843		Cover, Ignition		Appelez-nous	-
17	W10189177		Seal, Switch Cover				$ 10.00
18	W10269191		Tube, Pressure Regulator				$ 217.69
19	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
20	WPW10475147		Spark Module   (Replaces: 7431P038-60)			Immediately	$ 238.24
21	4453116		Adapter, Male				$ 179.43
NI	W10145481		Tubing, Gas (lf - Left)				$ 70.40
NI	W10276501		Tubing, Gas (rr)		Appelez-nous	-
NI	W10145480		Tubing, Gas (lf - Right)		Appelez-nous	-
NI	W10145479		Tubing, Gas (lr)		Appelez-nous	-
NI	W10145484		Tubing, Gas (rf)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
