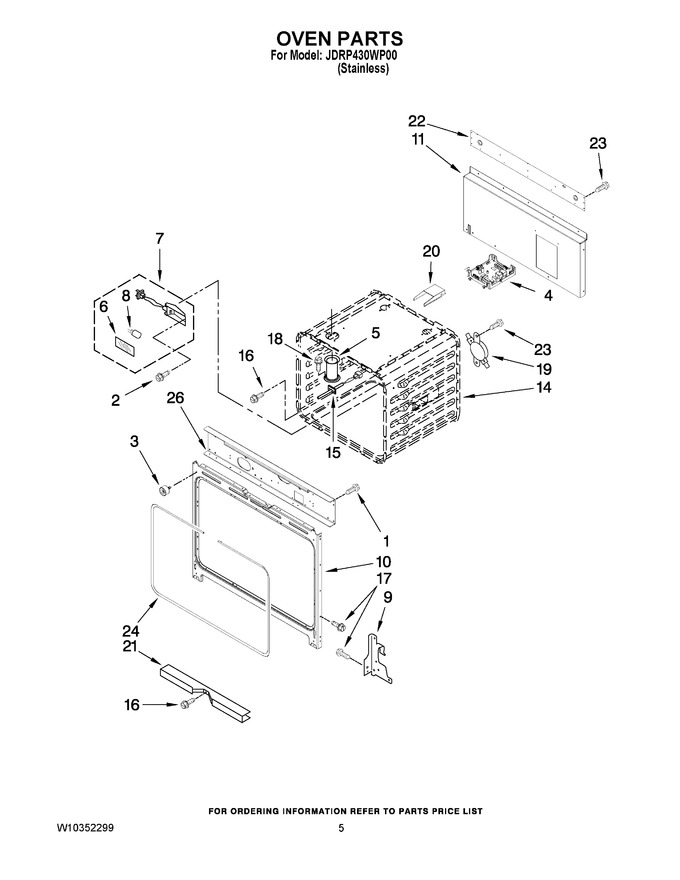

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.55 | |||||
| 2 | 4449748 | Screw |
|
$ 14.23 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 7.41 | |||||
| 4 | W10876298 | Control (Replaces: W10146048) |
|
Immediately | $ 505.11 | ||||
| 5 | W10288061 | Tube, Vent |
|
$ 115.94 | |||||
| 6 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 116.01 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 10 | W10160866 | Frame, Front |
|
- | |||||
| 11 | W10145392 | Panel, Back Bottom |
|
- | |||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 19 | WP4449751 | Thermostat (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 20 | W10235557 | Drawer Assembly |
|
- | |||||
| 21 | W11368870 | Retainer, Gasket (Replaces: W10157511) |
|
$ 24.91 | |||||
| 22 | W10269207 | Panel, Back Top |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 24 | W11675844 | Gasket, Oven (Replaces: W10160890) |
|
Immediately | $ 74.56 | ||||
| 26 | W10145377 | Support, Channel |
|
- | |||||
| NI | W11661177 | Insulation, Wrap (Replaces: W10282810) |
|
$ 162.50 | |||||
| NI | W11688396 | Insulation, Back (Replaces: W10282816) |
|
- |
