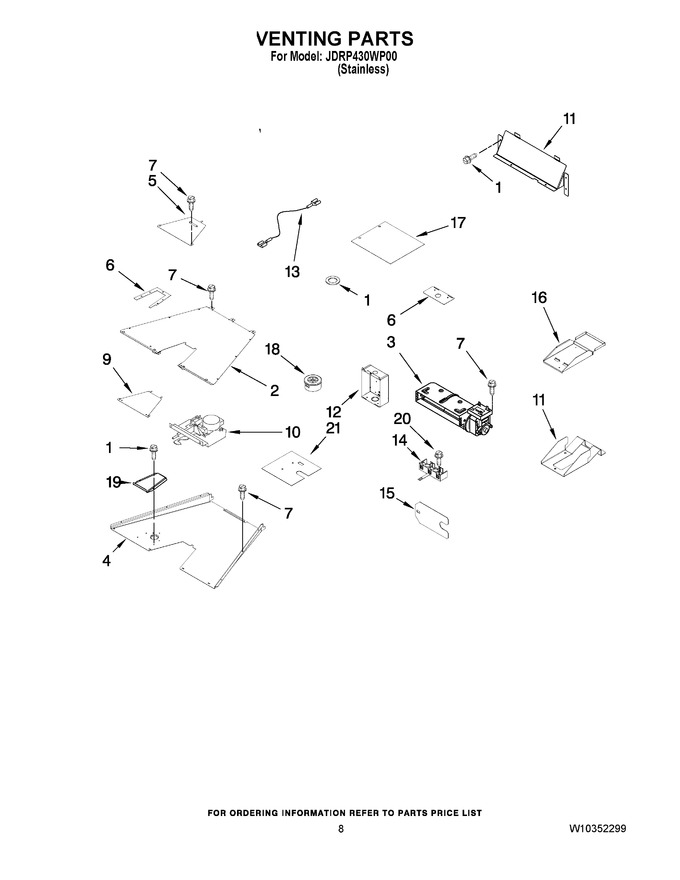

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270396		Seal, Chimney		Appelez-nous	-
2	W10160896		Vent, Cooling Top		Appelez-nous	-
3	WPW10245511		Blower   (Replaces: W10245511)			Immediately	$ 306.02
4	W10246078		Vent, Cooling Bottom		Appelez-nous	-
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10270397		Seal, Vent Slope		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	W10160858		Cover, Latch				$ 76.94
10	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 327.65
11	W10160844		Bracket, Mounting Cooling Fan		Appelez-nous	-
12	W10115858		Box, Terminal				$ 122.00
13	W10854967		Wire, Electrode   (Replaces: 8286725)			Immediately	$ 48.38
14	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
15	W10145382		Cover, Channel		Appelez-nous	-
16	W10249337		Support, Control		Appelez-nous	-
17	W10239444		Seal, Control		Appelez-nous	-
18	9757778		Bushing, Snap Split				$ 97.63
19	W10246075		Slope, Exhaust Vent		Appelez-nous	-
20	WP112432		Screw   (Replaces: 112432)				$ 8.63
21	9759721		Insulator, Terminal Block		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
