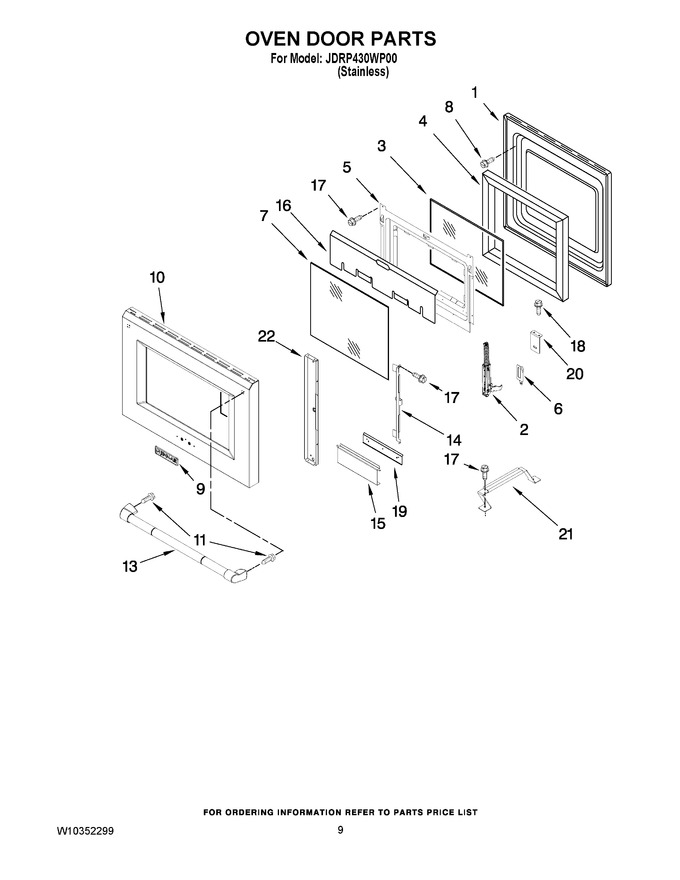

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Door Liner (Replaces: W10226001) |
|
$ 370.46 | |||||
| 2 | W10782123 | Hinge Door (left) (Replaces: W10269202) |
|
Immediately | $ 64.68 | ||||
| 2 | W10782122 | Hinge, Door (right) (Replaces: W10269201) |
|
$ 64.68 | |||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 213.34 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 189.77 | |||||
| 5 | W10226002 | Retainer, Glass |
|
- | |||||
| 6 | W10115876 | Cover, Hinge (left) |
|
- | |||||
| 6 | W10115877 | Cover, Hinge (right) |
|
- | |||||
| 7 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 194.20 | ||||
| 8 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 9 | WPW10159578 | Nameplate (Replaces: W10159578) |
|
Immediately | $ 88.54 | ||||
| 10 | W10322618 | Panel, Exterior (includes Glass) |
|
$ 282.68 | |||||
| 11 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 7.30 | |||||
| 13 | WP7701P475-60 | Door Handle (Replaces: 7701P475-60) |
|
$ 293.93 | |||||
| 14 | WP9759229 | Bracket(2nd Glass) (Replaces: 9759229) |
|
$ 187.50 | |||||
| 15 | W10145763 | Bracket, Center |
|
- | |||||
| 16 | 4457104 | Shield, Heat Top |
|
$ 39.22 | |||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 18 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 19 | 4457114 | Shield, Heat Bottom |
|
$ 217.79 | |||||
| 20 | W10115715 | Bracket, Door Top |
|
- | |||||
| 21 | 9759230 | Bracket(3rd Glass) |
|
$ 36.30 | |||||
| 22 | W10145761 | Bracket, Side (2) |
|
- |
