SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Upper Door Parts
05 - Upper Door Parts

Diagram for 06 - Lower Door Parts
06 - Lower Door Parts

Diagram for 07 - Internal Oven Parts
07 - Internal Oven Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10291448 Instructions, Installation Appelez-nous -
1 W10291454 Owners Manual Appelez-nous -
1 W10323649 Tech Sheet Appelez-nous -
1 9762761 Brochure, Tips (safe Cooking) Appelez-nous -
2 WPW10299236 Kit, Burner Cap   (Replaces: W10299236) In-Stock Immediately $ 225.49

3 W10401393 Cooktop   (Replaces: W10330921) Special Order $ 437.46

4 WPW10406878 Burners (left & Right Rear)   (Replaces: 8286183) Special Order $ 107.48

4 WPW10406243 Burners (left & Right Rear)   (Replaces: 8286181) In-Stock Immediately $ 39.08

4 WPW10406797 Burners (right Front (12k))   (Replaces: 8286182) Special Order $ 92.91

4 WPW10336094 Burners (center)   (Replaces: W10336094) Special Order $ 227.81

5 WPW10295131 Knob, Control   (Replaces: W10295131) In-Stock Immediately $ 23.16

6 WPW10171140 Kit, Burner Cap (fish Burner Only)   (Replaces: W10171140) Special Order $ 168.47

7 W10311218 Griddle Special Order $ 87.90

8 WPW10260069 Kit, Grate   (Replaces: W10260069) Special Order $ 339.91

9 W10284717 Panel, Manifold Special Order $ 127.17

10 WPW10333445 Base, Burner Cap (fish Burner)   (Replaces: W10333445) Special Order $ 110.05


    View Diagram in Separate Window     Print Icon   Print Part List

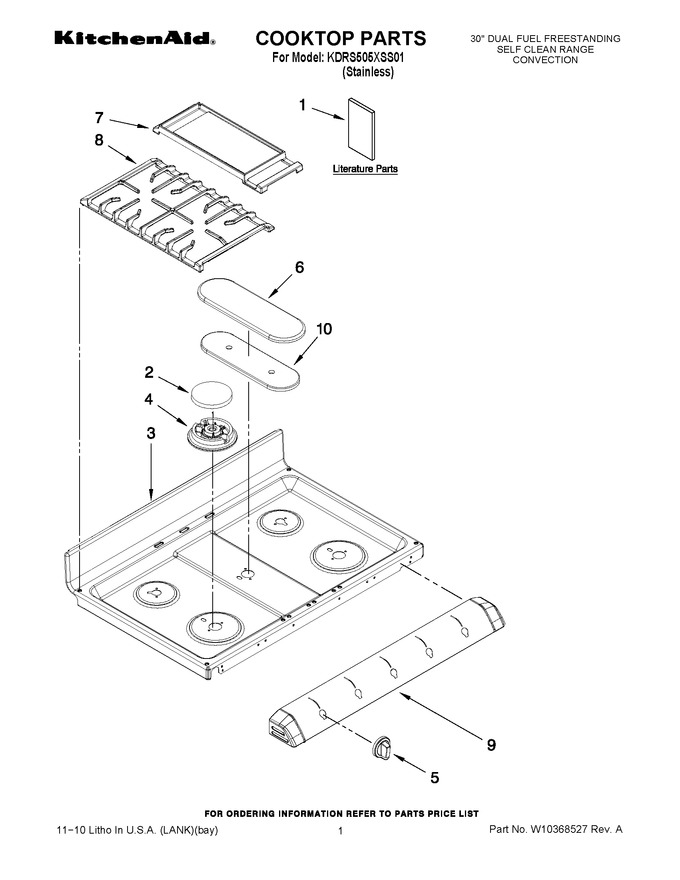

Diagram for KDRS505XSS01
