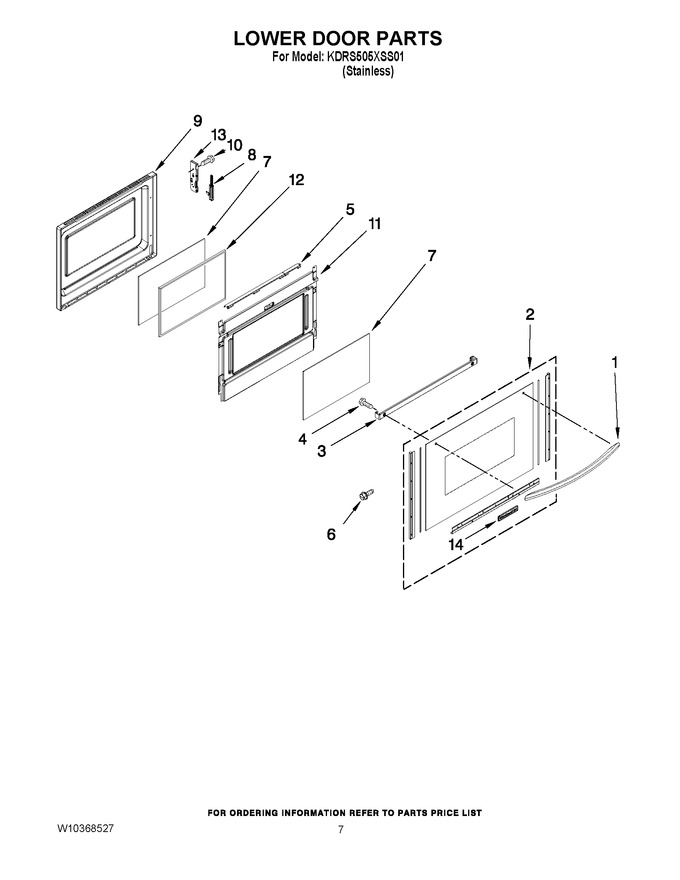

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10289076		Handle, Door   (Replaces: W10289076)				$ 334.61
2	W10326134		Assembly, Glass Door (includes Door Pnl & Badge)		Appelez-nous	-
3	W10645182		Bracket, Handle   (Replaces: W10296658)				$ 41.73
4	WPW10132940		Screw, Handle   (Replaces: 3196184)				$ 10.12
5	WPW10272594		Frame, Glass (2)   (Replaces: W10272594)			Immediately	$ 197.39
6	WPW10292297		Screw W/washer   (Replaces: W10292297)			Immediately	$ 7.55
7	WP9757706		Glass, Inner (2)   (Replaces: 9757706)			Immediately	$ 141.95
8	WPW10335433		Hinge, Door (right)   (Replaces: W10274495)				$ 104.99
8	WPW10335434		Hinge, Door (left)   (Replaces: W10274496)			Immediately	$ 102.90
9	WPW10292008		Lining, Door   (Replaces: W10292008)				$ 346.35
10	WP4449743		Screw (receiver)   (Replaces: 4449743)				$ 7.55
11	W10340464		Retainer, Insul.   (Replaces: W10287976)				$ 289.80
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 81.11
13	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 90.04
14	WPW10243391		Badge   (Replaces: W10243391)				$ 58.31

    View Diagram in Separate Window       Print Part List
